Product Details
Place of Origin: China
Brand Name: Tunisng
Certification: SGS , ISO9001
Model Number: DS019YM
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
Color: |
Transparent |
Melting Point(°C): |
90℃ |
Melt Index(g/10min): |
300±30g/10min; Condition:ASTMD1238-04 |
Hot Pressing Temperature(°C): |
130-140℃ |
Physical Form: |
Glassine Release Paper |
Conventional Thickness: |
0.18mm |
Conventional Width: |
480mm |
Length: |
100 Yards |
Density: |
1.2±0.02g/cm³ |
Washing Resistant Time: |
40°C/72H |
Color: |
Transparent |
Melting Point(°C): |
90℃ |
Melt Index(g/10min): |
300±30g/10min; Condition:ASTMD1238-04 |
Hot Pressing Temperature(°C): |
130-140℃ |
Physical Form: |
Glassine Release Paper |
Conventional Thickness: |
0.18mm |
Conventional Width: |
480mm |
Length: |
100 Yards |
Density: |
1.2±0.02g/cm³ |
Washing Resistant Time: |
40°C/72H |
Product: DS019YM
Description:

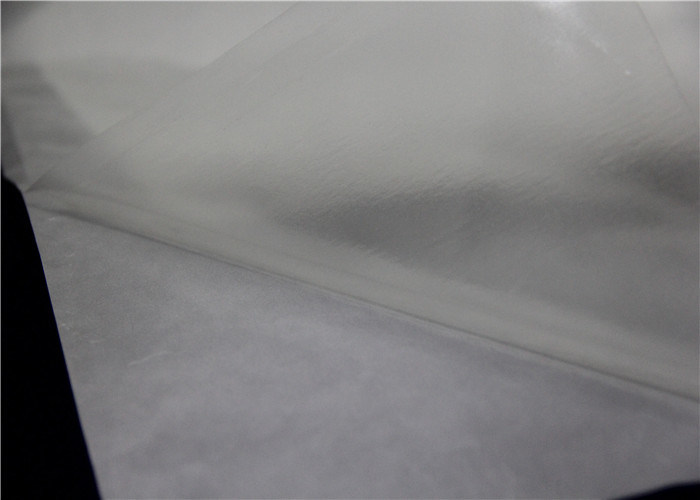

This product is a self-adhesive hot melt film. Double layer structure: the first layer is hot melt adhesive (no viscosity under normal temperature, need to be heated), and the other layer is acrylic acid pressure sensitive adhesive (in normal temperature, there is self-adhesive energy and the entrusted off-type paper).Self-adhesive level can be no less than 150 degree temperature, not lose the glue, and also can be paste repeatedly, in line with the European demand index.
Applications:
DS019YM development direction and application is mainly applicable to the embroidery trademark, LOGO class or need to cut after the positioning of hot pressing.
Composition:
Ethylene acrylic acid copolymer
Physical Characteristics:
| Color | transparent | Release liner | Glassine release paper |
| Density | 1.2±0.02g/cm³ | Conventional Thickness |
0.08mm (hot melt 0.08mm+acrylics 0.1mm) |
| Melting point | 90℃ | Width | 6mm-1000mm |
| Operating Temperature | 120℃-140℃ | Conventional Width | 480mm |
| Melt Flow Index |
300±10g/10min ; Condition:ASTMD1238-04 |
Length | 100 yards |
| Washing Resistant Time | 40°C/72H | Finished Products Specification | 480mm(width)*100yards(length)/roll |
Recommended Bonding Conditions:
| Flat Press: |
| Machine Setting: 120℃-140℃ |
| Dwell Time: 5-15 seconds |
| Pressure: 0.3-0.6mpa |
Applications
Company Information
Test Equipment
Certifications
Exhibition pictures
Buyer Feedback
FAQ
1 .How about hot melt adhesive film?
It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point,it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM,we are professional heat transfer material manufacturer ,having more than 10years experience.able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way.Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference,please let us know your fully address/ship
mode with courier,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal
