Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: SGS, ISO9001,Oeko-Tex
Model Number: DS8502
Payment & Shipping Terms
Minimum Order Quantity: 100yards
Price: negotiable
Packaging Details: 1-4 rolls in one box，each with black PP bag
Delivery Time: 3 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000000 yards per month
Material: |
TPU |
Density: |
1.18 G/cm3 |
Melt Point (DSC): |
90-100°C |
MI Index G/10mins: |
20±5 |
Operating Temperature: |
125°C -155°C |
Hardness: |
75A |
Normal Thickness: |
0.05mm, 0.08mm, 0.10mm |
Color: |
Translucent |
Application: |
Underwear,Clothing / Textiles,bonding Between Fabric And Non Woven Fabric Used For Gaement,automotive Interior Etc.,Fiber & Garment |
Main Raw Material: |
Polyurethane |
Material: |
TPU |
Density: |
1.18 G/cm3 |
Melt Point (DSC): |
90-100°C |
MI Index G/10mins: |
20±5 |
Operating Temperature: |
125°C -155°C |
Hardness: |
75A |
Normal Thickness: |
0.05mm, 0.08mm, 0.10mm |
Color: |
Translucent |
Application: |
Underwear,Clothing / Textiles,bonding Between Fabric And Non Woven Fabric Used For Gaement,automotive Interior Etc.,Fiber & Garment |
Main Raw Material: |
Polyurethane |

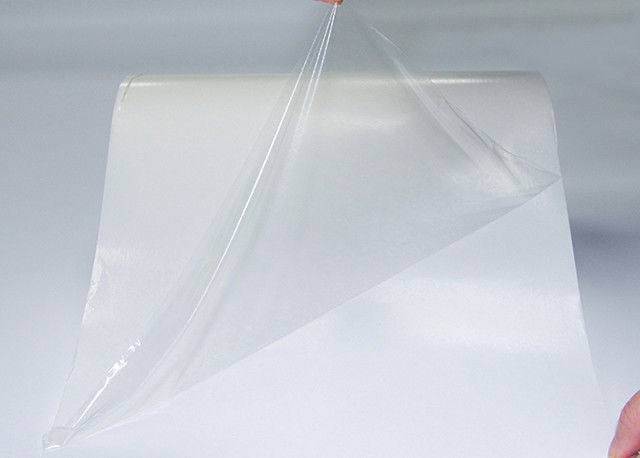

Equivalent Bemis 3415 TPU Hot Melt Glue Film Thermoplastic Polyurethane Film For Underwear
Physical characteristics:
This product is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
Applications:
DS8502 development direction and application is for clothing, shoes, textile accessories, handbags, luggage, ipad protective cover, mobile phone protective cover, sports equipment and other materials bonding.
Physical Characteristics:
| Color | transparent | Release liner | Glassine release paper |
| Density | 1.18±0.02g/cm3 | Thickness | 0.0125mm-1mm |
| Opening Time | 12min | Width | 5mm-1500mm |
| Hardness | 73±2 Shore A | Conventional thickness | 0.08mm,0.10mm,0.12mm,0.15mm |
| Melt Flow Index |
22±6g/10min; Condition:ASTMD1238-04 |
Conventional Width | 1380mm |
| Melting point | 95°C | Length | 100 yards |
|
Operating temperature
|
125°C -155°C | Finished products specification | 1380mm*100yards/roll |
Recommended Bonding Conditions:
| Flat Press | Second Flat Press |
| Machine Setting: 115℃-135℃ | Machine Setting: 125℃-155℃ |
| Dwell Time: 5-15 seconds | Dwell Time: 8-25seconds |
| Pressure: 0.3-0.6mpa | Pressure: 0.3-0.6mpa |
Customer Feedback:
Shipping & Packing:
Packing: 100 yard in roll, 2 rolls in case
FAQ
1 . How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point,it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands,then recommend you right products to you.
2. Do you accept OEM or ODM?
Yes ,we accept OEM and ODM,we are professional heat transfer material manufacturer ,having more than 10years experience.able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.
3. How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way.Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference,please let us know your fully address/ship
mode with courier,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal
