Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs REACH Oeko-tex
Model Number: DS019100R
Payment & Shipping Terms
Minimum Order Quantity: 100Yards
Price: USD0.27-0.6Yard
Packaging Details: 100 Yards in roll, 2 rolls in case
Delivery Time: 3-7 work days
Payment Terms: T/T
Supply Ability: 4000000m/month
Release Protection: |
Glassine Release Paper |
Composition: |
EAA |
Proportion: |
0.98±0.02g/cm3 |
Melting Range: |
80-110℃ （Tunsing DSC 214) |
Liquidity Index: |
60-95g/10min (ASTM D1238-04) |
Activation Temperature: |
123-160℃ （Tunsing） |
Washing Resistance: |
40℃ |
Conventional Width: |
500mm,1000mm, |
Al Thickness: |
0.05mm,0.08mm, |
Product Type: |
Hot Melt Adhesive Film |
Release Protection: |
Glassine Release Paper |
Composition: |
EAA |
Proportion: |
0.98±0.02g/cm3 |
Melting Range: |
80-110℃ （Tunsing DSC 214) |
Liquidity Index: |
60-95g/10min (ASTM D1238-04) |
Activation Temperature: |
123-160℃ （Tunsing） |
Washing Resistance: |
40℃ |
Conventional Width: |
500mm,1000mm, |
Al Thickness: |
0.05mm,0.08mm, |
Product Type: |
Hot Melt Adhesive Film |
EAA Hot Melt Glue Film For Embroidery Patch
Hot Melt Adhesive Film Product: DS019100R
Hot Melt Adhesive Film Description:
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
Hot Melt Adhesive Film Applications:

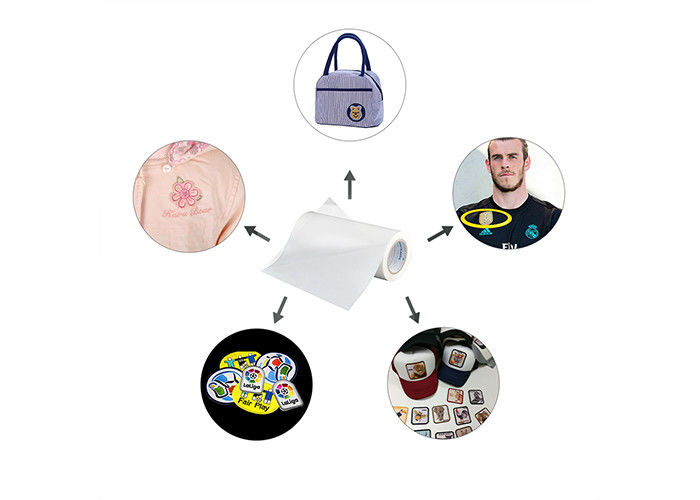

DS019100R is used in clothing, embroidery, footwear, luggage, handbags, toys, hats, sports goods, etc.
Composition: Ethylene acrylic copolymer
Physical Characteristics:
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 0.98±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 80-110℃ (Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 60-95g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280,1480mm |
| Activation Temperature | 123-160℃ (Tunsing) | Conventional Length | 100 yards |
| Washing Resistance | 40℃ | Finished Product | 500mm*100yards/roll |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 140℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.
Tunsing firmly believes that the information content is reliable. However, the claims for possible problems will not be guaranteed for the components of a particular process. Before use, the manufacturer must determine the suitability of the product for the items to be used. The user must bear the risks and possible problems in the various manufacturing stages of testing and use. The Seller and the manufacturer shall not be liable for any direct injury, loss, damage or misuse.
Buyer Feedback:
Related Products:
Packaging & Shipping
packing: 100Y/roll , 2rolls/ctn
shipping: 5-7days
Company Profile:
Testing Equipment:
Exhibition:
Certifications:
FAQ:
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt
point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different
usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to
assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest
way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept T/T , Paypal.
