Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS8614
Payment & Shipping Terms
Minimum Order Quantity: 100y
Price: USD 0.3-1.5 per yard
Packaging Details: 1 roll per carton
Delivery Time: Shipped in 3-5 days after receive payment
Payment Terms: T/T
Supply Ability: 3000 thousand meter per year
Keywords: |
Hot Melt Adhesive Film |
Proportion: |
1.18±0.02g/cm³ |
Open Time: |
8min |
Melt Flow Index: |
12±5g/10mins （ASTM D1238-04） |
Hardness: |
84±3 （Shore A） |
Melting Range: |
100-125℃ (Tunsing Melting Point Instrument |
Activation Temperature: |
110-145℃ （Tunsing） |
Release Protection: |
Glassine Release Paper |
Thickness: |
0.0125mm-0.15mm |
Keywords: |
Hot Melt Adhesive Film |
Proportion: |
1.18±0.02g/cm³ |
Open Time: |
8min |
Melt Flow Index: |
12±5g/10mins （ASTM D1238-04） |
Hardness: |
84±3 （Shore A） |
Melting Range: |
100-125℃ (Tunsing Melting Point Instrument |
Activation Temperature: |
110-145℃ （Tunsing） |
Release Protection: |
Glassine Release Paper |
Thickness: |
0.0125mm-0.15mm |

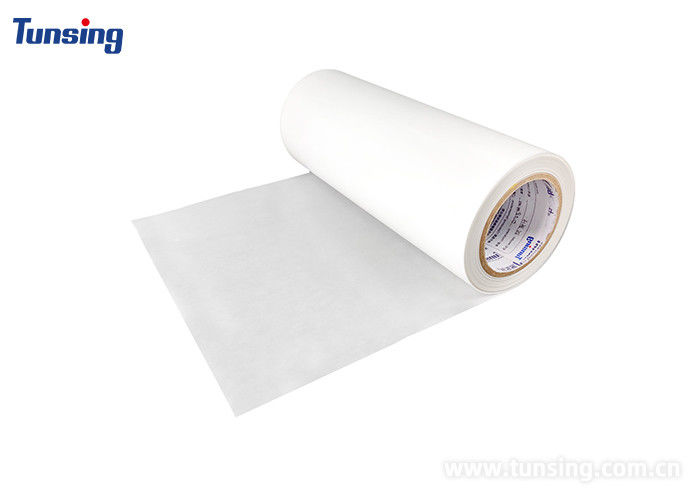

Foggy Translucent Hot Melt Adhesive Film TPU 0.15mm Thickness Laminating Fabric
Hot Melt Adhesive Film Product Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized.
This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has excellent cold resistance.
Hot Melt Adhesive Film Composition: Polyurethane synthesis modification
|
Color |
Foggy translucent |
Release Protection |
Glassine Release Paper |
|
Proportion |
1.18±0.02g/cm³ |
Thickness |
0.0125mm-0.15mm |
|
Curing Time |
8min |
Width |
5mm-1480mm |
|
Melt Flow Index |
12±5g/10mins (ASTM D1238-04) |
Conventional Thickness |
0.03mm,0.05mm,0.08mm,0.10mm |
|
Hardness |
84±3 (Shore A) |
Conventional Width |
1380mm |
|
Melting Range |
100-125℃ (Tunsing Melting point instrument) |
Conventional Length |
100 yards |
|
Activation Temperature |
110-145℃ (Tunsing) |
Finished Product |
1380mm*100yards/roll |
Hot Melt Adhesive Film Recommended Bonding Conditions:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
130℃-150℃ |
Mechanical Mold Temperature |
130℃-170℃ |
|
Time |
5-15 seconds |
Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
Hot Melt Adhesive Film Applications:
DS8614 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Hot Melt Adhesive Film Customer Feedback:
Bemis 3218 TPU Hot Melt Adhesive Film package:
The width is 138cm, length is 100yards per roll.
1 rolls by 1 carton.
It can ship by DHL/FedEx/TNT/UPS/air for 3-7days.
By sea for 15-30days.
