Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS019100R
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.2-0.4per yard
Packaging Details: 100 yard in per carton
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000yard per day
Keywords: |
Hot Melt Adhesive Film |
Melt Point: |
80-110Degree |
Release Protection: |
Glassine Release Paper |
Proportion: |
0.98±0.02gram/cm³ |
Activation Temperature: |
123-160Degree(Tunsing) |
Finished Product: |
500mm*100yards/roll |
Keywords: |
Hot Melt Adhesive Film |
Melt Point: |
80-110Degree |
Release Protection: |
Glassine Release Paper |
Proportion: |
0.98±0.02gram/cm³ |
Activation Temperature: |
123-160Degree(Tunsing) |
Finished Product: |
500mm*100yards/roll |

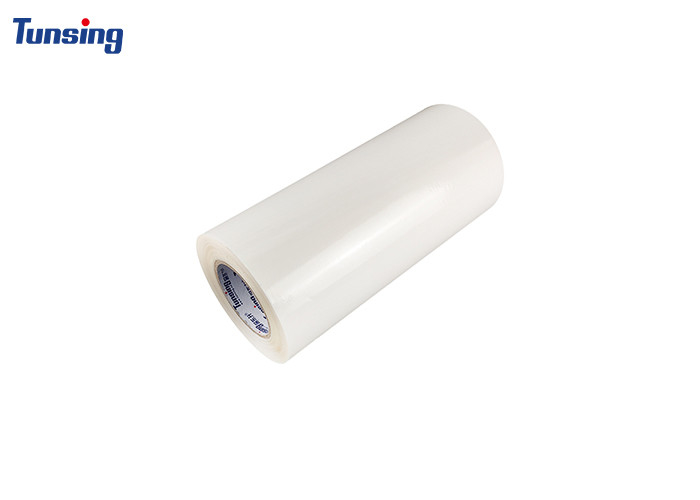

Transparent Thermoplastic Hot Melt Adhesive Film For Textile Fabric
Thermoplastic Hot-Melt Adhesive Film Description
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
Thermoplastic Hot-Melt Adhesive Film Technical Parameters:
Color |
Transparent |
Release Protection |
Glassine Release Paper |
Proportion |
0.98±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
Melting Range |
80-110℃ (Tunsing DSC 214) |
Width Range |
5mm-1480mm |
Liquidity Index |
60-95g/10min (ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280,1480mm |
Activation Temperature |
123-160℃ (Tunsing) |
Conventional Length |
100 yards |
Washing Resistance |
40℃ |
Finished Product |
500mm*100yards/roll |
Thermoplastic Hot-Melt Adhesive Film Technical Parameters:
Bonding Parameters ( reference only) |
Temperature |
110-130℃ |
|
Press |
1.5-2.5 kg/cm2 |
|
Time |
8-15 S |
Washing Resistance |
40℃ |
Excellent |
Why Choose Us
1. We are environmentally friendly adhesive enterprises to ensure the environmental performance of raw materials
2. Own factory, efficient technical equipment, a number of production lines
3. Professional R & D team, set production, research and development, sales as one of the new enterprises
4. Service thoughtful, short delivery cycle
The advantages by using hot melt adhesive film as follows:
1. Clean;
2. Eco-friendly;
3. High efficiency. The fast bonding speed could make the process done in several seconds.
4. Safety. This product is non-solvent and it could not make any hidden trouble in production;
5. Hot melt adhesive film has good fastness performance than other glue which could be widely used to laminate many materials;
6. Automatic production can be realized.
7. Portable and easily operated.
8. Reusable. The hot melt adhesive film used for the first time can be heated up and spun off for the second time usage by heating and melting again.
9. Functional features. The hot melt adhesive is good at dry cleaning, washable, low-temperature resistance, high-temperature resistance and other kinds of good features;
10. Can be used as both adhesives and sealants;
Thermoplastic Hot-Melt Adhesive Film Application
DS019100R is used in clothing, embroidery, footwear, luggage, handbags, toys, hats, sports goods, etc.
Customer feedback
Lea Li
What'sapp: +8618123754654 Tel: +8618123754654
Thermoplastic Hot-Melt Adhesive Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
3-5yards free sample for you to testing, you just pay to the shipping fee.
FQA:
Q1).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
Q2).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q3). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
