Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS3412H
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll,1roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
Color: |
Transparent |
Melt Flow Index: |
9±4g/10mins （ASTM D1238-04） |
Melting Range: |
115-135℃ (Tunsing Melting Point Instrument) |
Hardness: |
65±2 (Shore A) |
Conventional Thickness: |
0.05mm |
Width: |
5mm-1500mm |
Release Protection: |
Release Protection |
Operating Temperature: |
140-180 |
Color: |
Transparent |
Melt Flow Index: |
9±4g/10mins （ASTM D1238-04） |
Melting Range: |
115-135℃ (Tunsing Melting Point Instrument) |
Hardness: |
65±2 (Shore A) |
Conventional Thickness: |
0.05mm |
Width: |
5mm-1500mm |
Release Protection: |
Release Protection |
Operating Temperature: |
140-180 |

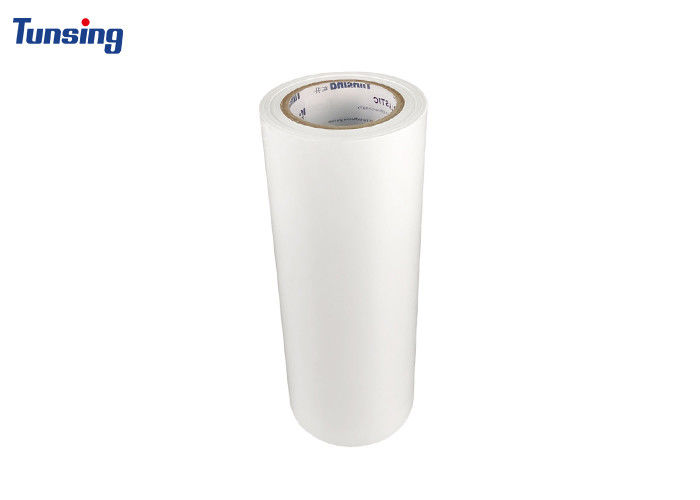

TPU Thermoplastic Polyurethane Hot Melt Adhesive Elastic Film
Product:DS3412H
Despription:
Tpu Hot Melt Adhesive Film is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. It has excellent adhesion for Lycra, spandex, nylon, excellent products such as soft feel and super elastic fabric hot pressing adhesive etc. With super soft feel, high resilience.
DS3412H Physical Characteristics:
| Color | transparent | Release liner | Glassine release paper |
| Density | 1.15±0.02g/cm3 | Thickness | 0.0125mm-1mm |
| Opening Time | 12min | Width | 5mm-1524mm |
| Hardness | 52±1 Shore A | Conventional thickness | 0.025mm,0.05mm,0.10mm |
| Melt Flow Index |
35±10g/10min; Condition ASTM D1238-04 |
Conventional Width | 1524mm |
| Rheology Temperature | 102°C -125°C | Length | 100yards |
|
Operating Temperature
|
155°C -185°C | Finished products specification | 1524mm*100yards/roll |
NOTICE:
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Application:DS3412H is used to bond one-piece underwear and seamless underwear.
Customer Feedback:
Shipping & Packing:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
