Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS8613
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: Negotation
Packaging Details: 100 yard in a roll, 1 rolls in a carton, or it's up on the customer's request
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
Colour: |
Foggy Translucent |
Release Protection: |
Glassine Release Paper |
Melt Flow Index: |
10±5g/10min（ASTM D1238-04 |
Melting Range: |
40-60℃（ISO11357） |
TG Temperature: |
-45±8℃ (GB/T 19466.2-2004) |
Thickness Range: |
0.025mm - 0.30mm |
Width Range: |
5mm - 1580mm |
Operating Temperature: |
120-180 |
Colour: |
Foggy Translucent |
Release Protection: |
Glassine Release Paper |
Melt Flow Index: |
10±5g/10min（ASTM D1238-04 |
Melting Range: |
40-60℃（ISO11357） |
TG Temperature: |
-45±8℃ (GB/T 19466.2-2004) |
Thickness Range: |
0.025mm - 0.30mm |
Width Range: |
5mm - 1580mm |
Operating Temperature: |
120-180 |

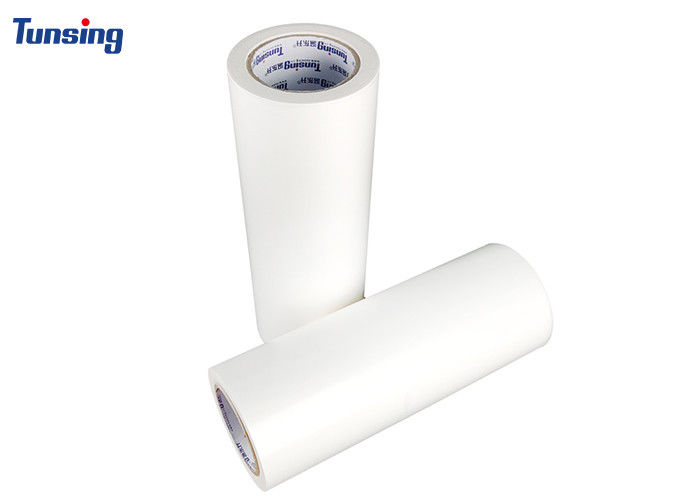

Similar Bemis 3218 Thermoplastic Polyurethane Tpu Hot Melt Adhesive Film
Product:DS8613
Despription:
DS8613 TPU Hot Melt Adhesive Film is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
|
Colour
|
White fog translucent
|
|
Proportion
|
1.20±0.02g/cm³
|
|
Opening time
|
8min
|
|
Liquidity Index
|
10±5g/10mins (ASTM D1238-04)
|
|
Hardness
|
97±2 (Shore A)
|
|
Melting Range
|
110-130℃ (Tunsing DSC 214)
|
|
Activation temperature
|
110-157℃ (Tunsing)
|
|
Conventional Thickness
|
0.03mm,0.05mm,0.08mm,
|
|
Conventional Width
|
1380mm
|
|
Conventional Length
|
100 yards
|
|
First Lamination
|
Second Implanting
|
||
|
Mechanical Mold Temperature
|
120℃-150℃
|
Mechanical Mold Temperature
|
130℃-180℃
|
|
Hot Pressing Time
|
5-15 seconds
|
Hot Pressing Time
|
8-25 seconds
|
|
Pressure
|
0.3-0.6mpa
|
Pressure
|
0.3-0.6mpa
|
Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Packing and Shipping:
Packing: 100-500m in roll
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, and 30-40 days by sea.
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q1) . What is hot melt adhesive web film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
