Product Details
Place of Origin: shenzhen.China
Brand Name: TUNSING
Certification: REACH
Model Number: DS001TS
Payment & Shipping Terms
Minimum Order Quantity: 100 yards / roll
Price: Negotiable
Packaging Details: Package:1-2rolls one carton
Delivery Time: 3 days after payment
Payment Terms: Paypal
Supply Ability: 9000meters per day
Keywords: |
Pes Hot Melt Ahesive Film |
Density: |
1.15±0.02g/cm³ |
Melting Range: |
90-120℃ |
Melt Flow Index: |
32±15g/10min |
Conventional Width: |
500mm,1000mm,1280mm,1480mm |
Conventional Length: |
100 Yards |
Finished Product: |
500mm*100yards/roll |
Keywords: |
Pes Hot Melt Ahesive Film |
Density: |
1.15±0.02g/cm³ |
Melting Range: |
90-120℃ |
Melt Flow Index: |
32±15g/10min |
Conventional Width: |
500mm,1000mm,1280mm,1480mm |
Conventional Length: |
100 Yards |
Finished Product: |
500mm*100yards/roll |

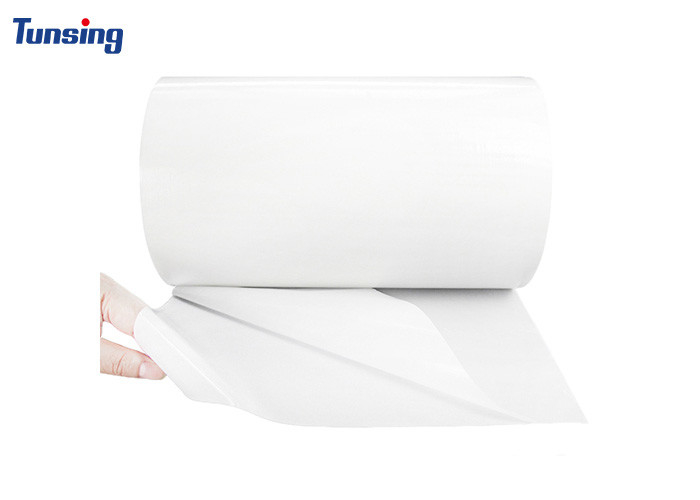

PES Ahesive Film Description:
This product is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.This kind of hot melt adhesive has excellent adhesion to textile products, PVC, PC.This product is resistant to dry cleaning and 40℃ washing.
PES adhesive film refers to a type of adhesive film that is made from a material called polyethersulfone (PES). PES is a high-performance thermoplastic polymer known for its excellent thermal stability, chemical resistance, and dimensional stability.
PES Ahesive Film Composition:
Copolyester
PES Ahesive Film Package
one roll or two rolls in one carton
Sample will be shipped by DHL, Fedex, UPS, TNT it will take 3-8 days.
It will be shipped after receiving the shipping cost.
It will be shipped according to the quantity and also after receiving the payment.
PES Ahesive Film Physical Characteristics:
|
Color |
Milky white translucent |
|
Density |
1.15±0.02g/cm³ |
|
Melt Flow Index |
32±15g/10min |
|
Melting Range |
90-120℃ |
|
Conventional Thickness |
0.05mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18m |
|
Conventional Width |
500mm,1000mm,1280mm,1480mm |
|
Conventional Length |
100 yards |
|
Finished product |
500mm*100yards/roll |
PES Ahesive Film Recommended Bonding Conditions
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
130℃-160℃ |
Mechanical Mold Temperature |
130℃-170℃ |
|
Time |
5-15 seconds |
Packing Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
PES Ahesive Film Applications
DS001TS is applied in clothing, footwear, accessories, reflective materials, handbags, bags, embroidery, crafts bonding.
Some common applications of PES adhesive films include bonding electronic components, attaching labels or overlays onto products, laminating flexible circuits, and joining composite materials in aerospace applications. They are valued for their ability to provide reliable adhesion even in demanding environments.
