Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS001TS
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 3000000 yards per month
Name: |
PES HoT Melt Adhesive Film |
Melting Range: |
80-105℃ (Tunsing DSC 214) |
Melt Flow Index: |
32±15g/10min（ASTM D1238-04） |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Proportion: |
1.15±0.02g/cm³ |
Activation Temperature: |
116-150℃ (Tunsing) |
Operating Temperature: |
130-170℃ |
Name: |
PES HoT Melt Adhesive Film |
Melting Range: |
80-105℃ (Tunsing DSC 214) |
Melt Flow Index: |
32±15g/10min（ASTM D1238-04） |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Proportion: |
1.15±0.02g/cm³ |
Activation Temperature: |
116-150℃ (Tunsing) |
Operating Temperature: |
130-170℃ |
High Dry-cleaning Resistance PES Hot Melt Polyester Adhesive Film For Textile Fabric

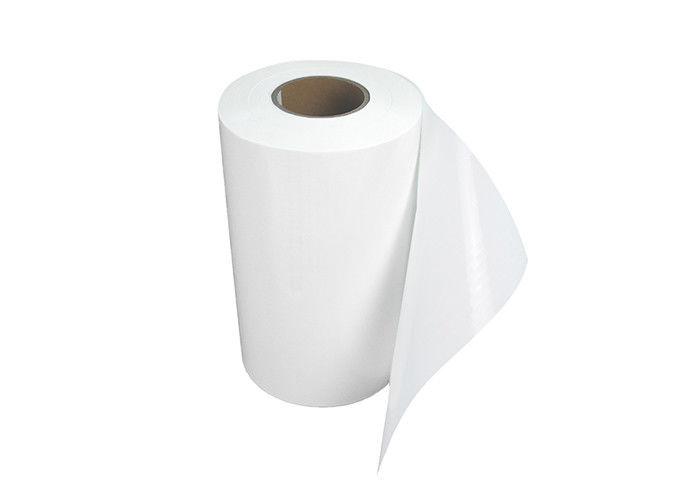

PES Hot Melt Adhesive Film
The PES Hot Melt adhesive film is thermoplastic, meaning it can be melted and solidified multiple times without undergoing significant degradation or loss of adhesive properties. This characteristic sets it apart from thermosetting adhesives, which undergo irreversible chemical changes upon curing.This PES Hot Melt Adhesive Film demonstrates exceptional adhesion to a variety of materials, including textile products, PVC (Polyvinyl Chloride), and PC (Polycarbonate). Its compatibility with these substrates differentiates it from adhesives that may have limited bonding capabilities with such materials.
The High Dry-cleaning Resistance PES Hot Melt Adhesive Film
PES hot melt adhesive film exhibits excellent durability and maintains its bonding strength even after undergoing dry cleaning cycles. PES hot melt adhesive film can withstand the mechanical stress and chemical exposure associated with the dry cleaning process without compromising the integrity of the adhesive bond.PES adhesive film demonstrates resistance to the chemicals typically used in dry cleaning solvents. PES hot melt adhesive film can withstand exposure to these chemicals without experiencing degradation or loss of adhesive properties. This chemical resistance ensures that the adhesive bond remains intact and reliable throughout the dry cleaning process
The Physical charateristics of PES Hot Melt Adhesive Film
Physical Characteristics
|
Colour |
Milky white translucent |
|
Release Layer |
Glassine Silicone Release Paper |
|
Thickness Range |
0.025mm-0.30mm |
|
Width Range |
5mm-1580mm |
|
1.15±0.02g/cm³ |
|
|
Melt Flow Index |
32±15g/10min(ASTM D1238-04) |
|
Melting Range |
80-105℃ (Tunsing DSC 214) |
|
TG Temperature |
0±5℃ (GB/T19466.2-2004) |
|
116-150℃ (Tunsing) |
Recommended Bonding Conditions
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
130℃-160℃ |
Mechanical Mold Temperature |
130℃-170℃ |
|
Hot Pressing Time |
5-15 seconds |
Hot Pressing Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
The Application of PES Hot Melt Adhesive Film
PES (Polyethersulfone) hot melt adhesive film finds application in various industries and bonding scenarios due to its unique properties. Here are some common applications of PES hot melt adhesive film:
1.Automotive Industry: PES hot melt adhesive film plays a crucial role in automotive manufacturing. It is used for bonding interior components such as door panels, headliners, carpets, and upholstery. The adhesive film's high strength and heat resistance make it suitable for withstanding the demanding conditions in automotive environments.
2.Electronics Industry: PES adhesive film is utilized in the electronics industry for bonding electronic components, securing wires and cables, and encapsulating sensitive devices. Its transparency and compatibility with materials like PVC and PC make it a preferred choice for electronics assembly and manufacturing processes.
1.Ease of Use: Customers often find PES hot melt adhesive film easy to handle and apply. Its ability to melt and flow under controlled heat and pressure simplifies the bonding process, resulting in efficient and convenient application.
2.Thermal Stability: Customers appreciate the thermal stability of PES adhesive film. They find that it maintains its adhesive properties even under high-temperature conditions, ensuring that the bonds remain intact and reliable in demanding environments.
PES Hot Melt Adhesive Film‘s
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
