Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS8606
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 3000000 yards per month
NAME: |
TPU Hot Melt Adhesive Film |
Melting Range: |
40-60℃ （ISO11357） |
Melt Flow Index: |
27±9g/10min （ASTM D1238-04） |
Thickness: |
0.025mm-0.30mm |
Width: |
5mm-1580mm |
Proportion: |
1.18±0.02g/cm3 |
Hardness: |
90±3 （Shore A） |
Operating Temperature: |
90-130℃ |
NAME: |
TPU Hot Melt Adhesive Film |
Melting Range: |
40-60℃ （ISO11357） |
Melt Flow Index: |
27±9g/10min （ASTM D1238-04） |
Thickness: |
0.025mm-0.30mm |
Width: |
5mm-1580mm |
Proportion: |
1.18±0.02g/cm3 |
Hardness: |
90±3 （Shore A） |
Operating Temperature: |
90-130℃ |

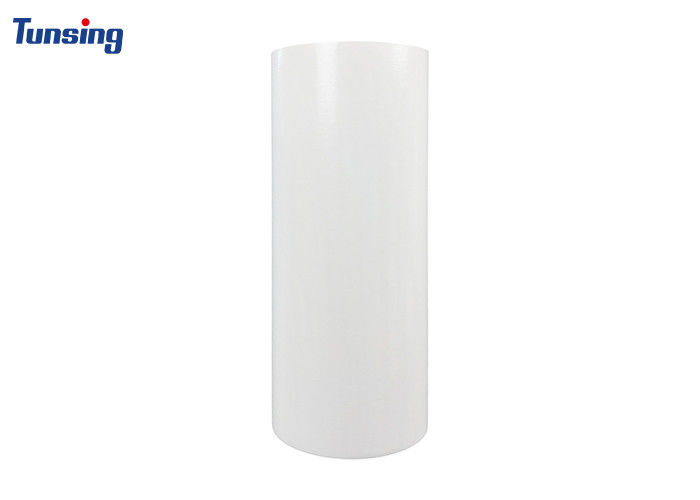

Thickness 0.08mm Low Melt Point Hot Melt TPU Hot Melt Film for Laminating Fabric
Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film
TPU hot melt adhesive film is a thin film material made of thermoplastic polyurethane (TPU). TPU hot melt adhesive film possesses excellent thermal melting properties and adhesive characteristics, allowing it to quickly bond to various substrates when heated. The TPU hot melt adhesive film is commonly used in applications such as textile lamination, shoe manufacturing, automotive interior trim, and electronic device assembly. Its high strength, flexibility, and heat resistance make it a versatile and reliable choice for bonding and joining materials in various industries.
The Charateristics of TPU Hot Melt Adhesive Film
1.Excellent adhesion: The TPU hot melt adhesive film exhibits strong bonding properties to a wide range of substrates, including textiles, plastics, metals, and foams. TPU hot melt adhesive film forms a durable and reliable bond, even under challenging conditions.
2.Heat-activated bonding: The TPU hot melt adhesive film is designed to be activated by heat. When heated to the appropriate temperature, TPU hot melt adhesive film melts and becomes tacky, allowing for easy application and bonding between two surfaces. Once cooled, TPU hot melt adhesive film solidifies and forms a strong adhesive bond.
3.High flexibility: TPU hot melt adhesive film retains its flexibility and elasticity, even after bonding. This characteristic is particularly important in applications where the bonded materials need to withstand bending, stretching, or other forms of mechanical stress.
The Physical Characteristics of TPU Hot Melt Adhesive Film
1.Melting point: TPU hot melt adhesive film has a specific melting point, which determines the temperature at which it becomes tacky and ready for bonding. The melting point can vary depending on the specific formulation of the TPU material.
2.Density: TPU hot melt adhesive film has a moderate density, typically ranging from 1.1 to 1.3 g/cm³. This density allows for a good balance between strength and flexibility in the bonded assembly.
3.Thickness: TPU hot melt adhesive film is available in various thicknesses, ranging from thin films of a few micrometers to thicker films of several millimeters. The thickness can be chosen based on the specific application requirements.
Physical Characteristics:
| Colour | Foggy translucent |
| Release Protection | Glassine Release Paper |
| Thickness Range | 0.025mm-0.30mm |
| Width Range | 5mm-1580mm |
| Proportion | 1.18±0.02g/cm3 |
| Melt Flow Index | 27±9g/10min (ASTM D1238-04) |
| Hardness | 90±3 (Shore A) |
| Melting Range(DSC) | 40-60℃ (ISO11357) |
| Glass transition temperature (TG) |
-40±8℃ (GB/T 19466.2-2004) |
| Activation Temperature | 80-116℃ (Tunsing) |
The Appication of TPU Hot Melt Adhesive Film
DS8606 is primarily utilized in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, and sporting goods. TPU hot melt adhesive film offers exceptional adhesive properties and is specifically designed for these applications. TPU hot melt adhesive film provides a strong and durable bond, ensuring reliable performance in various industries. The versatility of DS8606 enables it to cater to the diverse bonding needs of different materials and substrates, making it a preferred choice for manufacturers in the aforementioned sectors.
TPU Hot Melt Adhesive Film's Customer Feedback
Customer feedback on TPU hot melt adhesive film has been overwhelmingly positive. Customers have praised its excellent adhesive properties, ease of use, and reliability in bonding various materials. They appreciate the strong and durable bonds it creates, which withstands rigorous use and environmental conditions. The flexibility of TPU hot melt adhesive film has been particularly valued, as it allows for bonding on curved or irregular surfaces without compromising the bond strength. Customers have also commended its resistance to temperature variations, chemicals, and UV radiation, making it suitable for a wide range of applications. Overall, customers have expressed satisfaction with TPU hot melt adhesive film, highlighting its contribution to efficient and durable bonding solutions in their respective industries.
TPU Hot Melt Adhesive Film's
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
