Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS8507
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 40000 Square meters per day
NAME: |
Hot Melt Adhesive Film |
Melt Flow Index: |
10±5g/10min(ASTM D1238-04) |
Melting Range: |
105-125℃ (ISO11357) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Hardness: |
72±2(Shore A) |
Activation Temperature: |
116-157℃(Tunsing) |
Operating Temperature: |
130-180℃ |
NAME: |
Hot Melt Adhesive Film |
Melt Flow Index: |
10±5g/10min(ASTM D1238-04) |
Melting Range: |
105-125℃ (ISO11357) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Hardness: |
72±2(Shore A) |
Activation Temperature: |
116-157℃(Tunsing) |
Operating Temperature: |
130-180℃ |

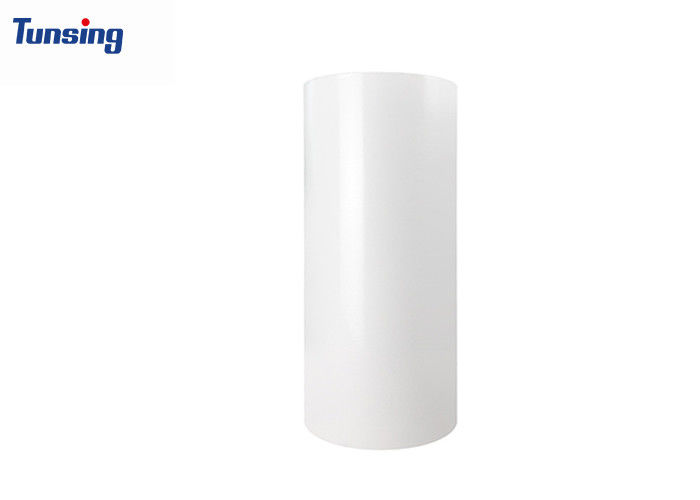

TPU High Elasticity Hot Melt Adhesive Film Polyurethane Hot Melt Adhesive Glue for Waterproof Fabric
Hot Melt Adhesive Film
The hot melt adhesive film described is a thermoplastic film hot melt adhesive that comes with a release paper. The hot melt adhesive film can be heated and plasticized repeatedly for bonding purposes. This particular hot melt adhesive is especially suitable for use with textiles, TPU, and PVC materials. The hot melt adhesive film possesses several notable characteristics, including a low melt flow index, a good hand feel and resilience, as well as excellent heat and cold resistance properties.
The Physcial Characteristics of Hot Melt Adhesive Film
Physical Characteristics
Colour | Transparent |
Release Layer | Glassine Release Paper |
Thickness Range | 0.025mm-0.30mm |
Width Range | 5mm-1580mm |
Proportion | 1.18±0.02g/cm³ |
Melt Flow Index | 10±5g/10min(ASTM D1238-04) |
Hardness | 72±2(Shore A) |
Melting Range | 105-125℃ (ISO11357) |
TG Temperature | -27±10℃(GB/T 19466.2-2004) |
Activation Temperature | 116-157℃(Tunsing) |
Recommended Bonding Conditions
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 130℃-170℃ | Mechanical Mold Temperature | 140℃-180℃ |
Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
The Characteristics of Hot Melt Adhesive Film
TPU hot melt adhesive film exhibits strong adhesion properties, allowing it to bond effectively to various substrates, including fabrics, plastics, and metals.This hot melt adhesive film is thermoplastic, meaning it can be activated and bonded at elevated temperatures. When heated, hot melt adhesive film becomes soft and molten, enabling it to create a strong bond upon cooling.TPU hot melt adhesive film offers excellent flexibility and elasticity, allowing it to withstand stretching and bending without compromising the integrity of the bond. This makes it suitable for applications that require flexibility and movement.
The Application of Hot Melt Adhesive Film
Hot melt adhesive film is commonly used in the textile and apparel industry for fabric bonding, seam sealing, hemming, and pocket attachment.Hot melt adhesive film is extensively used in footwear manufacturing for bonding shoe components such as soles, insoles, heel counters, and toe caps. It offers strong adhesion and flexibility, ensuring the durability and comfort of the footwear.Hot melt adhesive film is employed in the automotive industry for interior trim applications, including bonding fabrics, foams, and carpets to various surfaces. Hot melt adhesive film provides a reliable bond that withstands the demanding conditions in automotive interiors.
TPU Hot Melt Adhesive Film
Packing & Shipping :
Packing: 100 yard in roll, 1-2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
