Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS615B
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 40000 Square meters per day
NAME: |
PES Hot Melt Adhesive Film |
Melt Flow Index: |
40±7g/10min(ASTM D1238-04) |
Melting Range: |
80-100℃(ISO11357) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
115-140℃(Tunsing) |
Proportion: |
1.05±0.02g/cm³ |
Operating Temperature: |
150-190℃ |
NAME: |
PES Hot Melt Adhesive Film |
Melt Flow Index: |
40±7g/10min(ASTM D1238-04) |
Melting Range: |
80-100℃(ISO11357) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
115-140℃(Tunsing) |
Proportion: |
1.05±0.02g/cm³ |
Operating Temperature: |
150-190℃ |

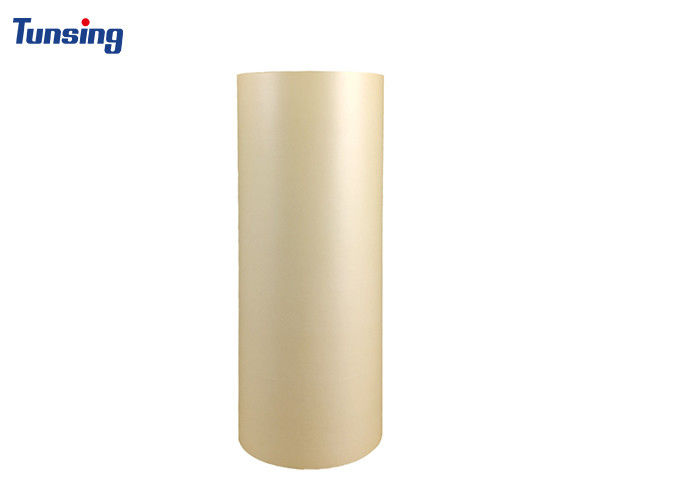

High Temperature PES Hot Melt Adhesive Film Polyester Double Sided Adhesive Film for Mental
Hot Melt Adhesive Film
PES Hot Melt Adhesive Film
"This Hot Melt Adhesive Film is a high-performance thermoplastic film hot melt adhesive that features a convenient release paper for easy application. Hot Melt Adhesive Film offers exceptional bonding capabilities through repeated cycles of heating and melting. The superior formulation of this hot melt adhesive ensures outstanding adhesion to a wide range of materials, including textiles, metals (such as copper, aluminum, iron, and stainless steel), plastics (like PC, ABS, and glass fiber), as well as wood and paper."
The Physical Characteristics of Hot Melt Adhesive Film
Physical Characteristics
| Colour | Amber |
| Release Layer | Glassine Release Paper |
| Thickness Range | 0.025mm-0.30mm |
| Width Range | 5mm-1580mm |
| Proportion | 1.05±0.02g/cm³ |
| Melt Flow Index | 40±7g/10min(ASTM D1238-04) |
| Melting Range | 80-100℃(ISO11357) |
| TG Temperature | 14±5℃ (GB/T 19466.2-2004) |
| Activation Temperature | 115-140℃(Tunsing) |
Recommended Bonding Conditions
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 150℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Finished Product | 0.3-0.6mpa |
1.Strong adhesion: PES hot melt adhesive film exhibits high bonding strength to a variety of substrates, including textiles, metals, plastics, wood, and paper.
2.Heat activation: This PES hot melt adhesive film can be activated and melted by applying heat, allowing it to form a strong bond upon cooling. The melting temperature typically ranges from 150°C to 180°C, depending on the specific formulation.
3.Thermoplastic nature: PES hot melt adhesive film can be repeatedly heated and cooled without undergoing any significant change in its chemical structure, making it suitable for applications that require repositioning or reworkability.
The Application of Hot Melt Adhesive Film
1.Metal bonding: PES hot melt adhesive film is commonly used for bonding metals such as copper, aluminum, iron, and stainless steel. PES hot melt adhesive film offers excellent adhesion strength, ensuring a durable and reliable bond.PES hot melt adhesive film demonstrates good compatibility with a wide range of metal substrates, allowing for bonding in diverse industries and applications.PES hot melt adhesive film is widely utilized in industries such as automotive, electronics, appliances, and construction for metal bonding applications. PES hot melt adhesive film can be used for attaching metal components, laminating metal sheets, or securing metal parts in assemblies.
PES Hot Melt Adhesive Film's Customer Feedback
PES Hot Melt Adhesive Film
Packing & Shipping :
Packing: 100 yard in roll, 1-2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
