Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS8614
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 40000 Square meters per day
NAME: |
Hot Melt Adhesive Film |
Melt Flow Index: |
12±5g/10min（ASTM D1238-04） |
Melting Range: |
35-60℃ （ISO11357） |
Thickness Range: |
0.025mm - 0.30mm |
Width Range: |
5mm - 1580mm |
Hardness: |
85±3 （Shore A） |
Activation Temperature: |
110-145℃ （Tunsing） |
Operating Temperature: |
130-170℃ |
NAME: |
Hot Melt Adhesive Film |
Melt Flow Index: |
12±5g/10min（ASTM D1238-04） |
Melting Range: |
35-60℃ （ISO11357） |
Thickness Range: |
0.025mm - 0.30mm |
Width Range: |
5mm - 1580mm |
Hardness: |
85±3 （Shore A） |
Activation Temperature: |
110-145℃ （Tunsing） |
Operating Temperature: |
130-170℃ |

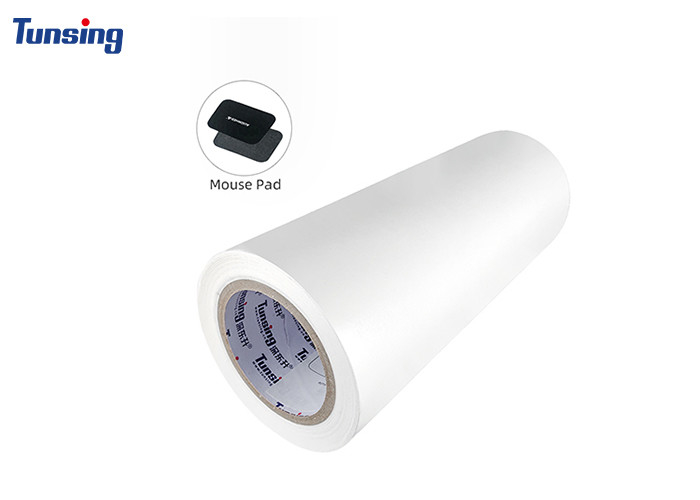

138CM Width Hot Melt Film Adhesive Polyurethane Film for Nylon Fabric
Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film
The TPU Hot-melt adhesive film you described is a versatile adhesive product with several beneficial properties. The TPU Hot-melt adhesive film is designed to be activated by heat and can be repeatedly heated and plasticized without losing its adhesive properties. The TPU hot melt adhesive film is supported by release paper, which provides protection and facilitates easy application.
This particular hot-melt adhesive exhibits excellent adhesion to various materials, including textiles, TPU (thermoplastic polyurethane), and PVC (polyvinyl chloride). TPU hot melt adhesive film is formulated to establish strong bonds with these substrates, ensuring reliable and durable adhesion. Additionally, the TPU hot melt adhesive film offers desirable characteristics such as a good feel and resilience, which can enhance the overall quality of the bonded surfaces.
The Charateristics of TPU Hot Melt Adhesive Film
TPU hot-melt adhesive film is designed for versatile bonding applications. TPU hot melt adhesive film can create strong and durable bonds with various substrates, including textiles, plastics, metals, and more.Being a thermoplastic material, TPU hot-melt adhesive film can be softened and reactivated upon heating. This property allows for easy application and repositioning during the bonding process.The TPU hot melt adhesive film exhibits excellent adhesion properties to a wide range of materials. It forms strong bonds, ensuring reliable and long-lasting adhesion.
The Physical Characteristics of TPU Hot Melt Adhesive Film
Physical Characteristics: DSC & TG Temperature Graph
| Colour | Foggy translucent |
| Release Protection | Glassine Release Paper |
| Thickness Range | 0.025mm - 0.30mm |
| Width Range | 5mm - 1580mm |
| Proportion | 1.18±0.02g/cm³ |
| Melt Flow Index | 12±5g/10min(ASTM D1238-04) |
| Hardness | 85±3 (Shore A) |
| Melting Range | 35-60℃ (ISO11357) |
| TG Temperature | -35±8℃ (GB/T 19466.2-2004) |
| Activation Temperature | 110-145℃ (Tunsing) |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-150℃ | Mechanical Mold Temperature | 130℃-170℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
The Application of TPU Hot Melt Adhesive Film
TPU hot-melt adhesive film plays a crucial role in automotive applications, including interior trim assembly, headliner bonding, carpet installation, and foam lamination. TPU hot melt adhesive film provides strong adhesion to various automotive materials, withstands temperature variations, and exhibits excellent resistance to chemicals and moisture.TPU hot-melt adhesive film is employed in the electronics and electrical industry for bonding components, wire harnessing, and protecting sensitive electronic parts. Its heat activation and reliable adhesion properties make it suitable for applications requiring secure and durable bonds.
TPU Hot Melt Adhesive Film's Customer Feedback
TPU Hot Melt Adhesive Film
Packing & Shipping :
Packing: 100 yard in roll, 1-2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
