Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS0262
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 3000000 yards per month
NAME: |
Hot Melt Adhesive Film |
Melting Temperature: |
95℃±5 |
Density: |
1.4±0.02g/cm3 |
Width Range: |
6mm-20mm |
Conventional Thickness: |
0.08mm±0.005mm、0.12mm±0.01mm |
Operating Temperature: |
230-240℃ |
NAME: |
Hot Melt Adhesive Film |
Melting Temperature: |
95℃±5 |
Density: |
1.4±0.02g/cm3 |
Width Range: |
6mm-20mm |
Conventional Thickness: |
0.08mm±0.005mm、0.12mm±0.01mm |
Operating Temperature: |
230-240℃ |

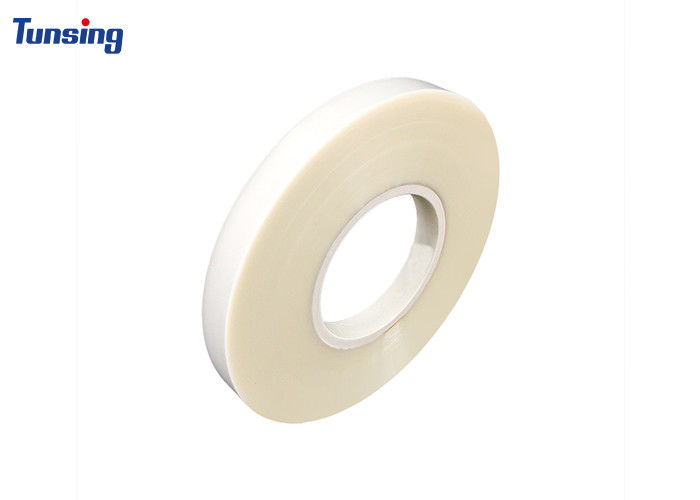

0.08MM Thickness Single Sided Hot Melt Adhesive Melt Film Adhesive Tape for Producing Sausage Clips
Hot Melt Adhesive Film
This hot melt adhesive film is a single-sided hot-press adhesive with a high-low temperature structure, designed specifically for the food packaging industry and the assembly of metal locks. hot melt adhesive film offers the unique ability to undergo repeated heating and plasticization. The hot melt adhesive film is primarily intended for securing fully automatic and manual food packaging equipment, and hot melt adhesive film demonstrates excellent bonding properties with various types of metal, including steel nails, row nails, aluminum buckles, paper nails, and galvanized metal.
The Structure of Hot Melt Adhesive Film
1.Base Material: The hot melt adhesive film is composed of a base material that provides the foundation for its adhesive properties. This material is typically a thermoplastic polymer that can melt and flow when heated.
2.Heat-Activated Layer: The hot melt adhesive film contains a heat-activated layer on one side, which is designed to bond with the desired substrate when exposed to elevated temperatures. This layer undergoes a phase change from solid to liquid upon heating, allowing it to effectively adhere to the surface.
3.Release Liner: To protect the heat-activated layer and prevent premature bonding, a release liner is applied to the adhesive's exposed side. This liner is typically made of a non-stick material, such as silicone-coated paper or film, allowing for easy removal before application.
3.Optional Protective Coating: In some cases, an additional protective coating may be applied to the adhesive surface to enhance its durability, resistance to moisture, or other desired properties. This coating can be customized based on specific application requirements.
The Physical Characteristics of Hot Melt Adhesive Film
Physical Characteristics:
| Appearance | Transparent | Conventional Thickness | 0.08mm±0.005mm,0.12mm±0.01mm |
| Density | 1.4±0.02g/cm3 | Width Range | 6mm-20mm |
| Melting Temperature | 95℃±5 | Conventional length | 400m,450m,600m |
| Tensile Strength | 1.855MPa | Length | 500m/roll |
Recommended Bonding Conditions:
| Machine Setting: | 230℃-240℃ | Wording Speed | 170PCS/Min |
|
Notice |
This product is repelled with oil. Before use, the aluminum buckle material must be cleaned and then the composite bond is hot pressed. The above conditions are only recommended processing parameters. The manufacturer needs to adjust according to the actual temperature, pressure and speed of the equipment before use to match the optimal construction conditions. |
||
The Application of Hot Melt Adhesive Film
The DS0262 adhesive is designed to provide excellent bonding compatibility with a wide range of fastener types, including C-type nails, M-type nails, T-nails, O-bolts, and U-shaped metal buckles. This versatility allows for seamless integration into different assembly processes and applications.The hot melt adhesive film formulation of DS0262 is optimized to ensure strong and reliable alignment bonding between the fasteners and the respective substrates. It provides exceptional adhesion strength, ensuring secure and long-lasting connections.
