Product Details
Place of Origin: shenzhen.China
Brand Name: TUNSING
Certification: RoHs, REACH
Model Number: DS001TS
Payment & Shipping Terms
Minimum Order Quantity: 1-2rolls one carton
Price: $0.3-$1/yard
Packaging Details: Package:1-2rolls in one carton
Delivery Time: 3-7 working days after payment
Payment Terms: T/T, paypal
Supply Ability: 5000yard per day
Keywords: |
Polyester Hot Melt Adhesive Film |
Other Names: |
PES Thermoplastic Film |
Density: |
1.15±0.02g/cm³ |
Melt Range (DSC): |
90-120℃ |
MI G/10mins: |
32±15g/10min |
Operating Temperature: |
130℃-170℃ |
Conventional Thickness: |
0.05mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
Finished Product: |
500mm*100yards/roll |
Keywords: |
Polyester Hot Melt Adhesive Film |
Other Names: |
PES Thermoplastic Film |
Density: |
1.15±0.02g/cm³ |
Melt Range (DSC): |
90-120℃ |
MI G/10mins: |
32±15g/10min |
Operating Temperature: |
130℃-170℃ |
Conventional Thickness: |
0.05mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
Finished Product: |
500mm*100yards/roll |

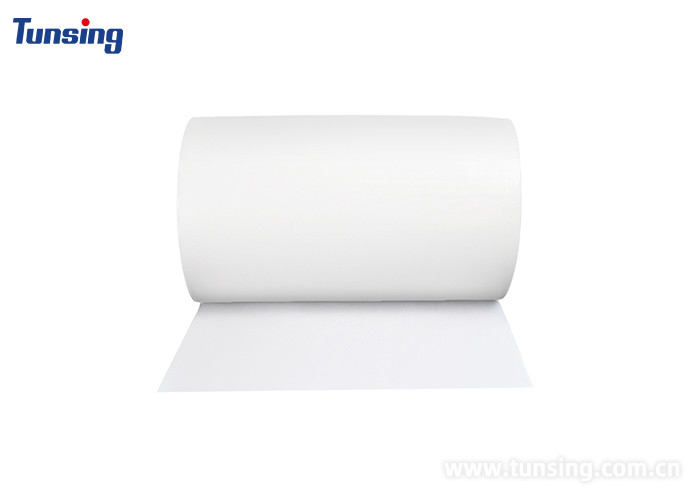

Polyester Hot Melt Adhesive Film For Textile Fabric To PVC
Polyester hot melt adhesive film Description:
This product is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.This kind of hot melt adhesive has excellent adhesion to textile products, PVC, PC.This product is resistant to dry cleaning and 40℃ washing.
Polyester hot melt adhesive film Composition:
Copolyester
Polyester hot melt adhesive film Package:
one roll or two rolls in one carton
Sample will be shipped by DHL, Fedex, UPS, TNT it will take 3-8 days.
It will be shipped after receiving the shipping cost.
It will be shipped according to the quantity and also after receiving the payment.
Polyester hot melt adhesive film Characteristics:
Color |
Milky white translucent |
Density |
1.15±0.02g/cm³ |
Melt Flow Index |
45±25g/10min |
Melting Range |
90-120℃ |
Conventional Thickness |
0.05mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
Conventional Length |
100 yards |
Polyester hot melt adhesive film Recommended Bonding Condition
First Lamination |
Second Implanting | ||
Mechanical Mold Temperature | 130℃-160℃ | Mechanical Mold Temperature | 130℃-170℃ |
Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
DS001TS is applied in clothing, footwear, accessories, reflective materials, handbags, bags, embroidery, crafts bonding.
