Home > products > EVA Hot Melt Adhesive Film > Amber Translucent EVA Hot Melt Adhesive Film Metal Glue Bonding Metal

Amber Translucent EVA Hot Melt Adhesive Film Metal Glue Bonding Metal

Product Details

Place of Origin: China

Brand Name: Tunsing

Certification: ISO,RoHS,REACH

Model Number: DS318

Payment & Shipping Terms

Minimum Order Quantity: 2roll

Price: negotiate

Packaging Details: 50mY/roll , 2rolls/ctn

Delivery Time: 3-7 days

Payment Terms: D/A, T/T,PayPal

Supply Ability: 40000 m/month

Get Best Price
Highlight:

1480mm EVA Hot Melt Adhesive Film

,

RoHS EVA Hot Melt Adhesive Film

,

1480mm Hot Melt Adhesive Sheets

Color:
Amber Translucent
Proportion:
1.0±0.02g/cm³
Melting Range:
65-90℃ (Tunsing DSC 214)
Liquidity Index:
27±10g/10mins (ASTM D1238-04)
Conventional Thickness:
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm
Conventional Width:
1480mm
Conventional Length:
100 Yards
Mechanical Mold Temperature:
110℃-150℃
Key Words:
Eva Hot Melt Adhesive Film
Certificate:
ISO,RoHS,REACH
Color:
Amber Translucent
Proportion:
1.0±0.02g/cm³
Melting Range:
65-90℃ (Tunsing DSC 214)
Liquidity Index:
27±10g/10mins (ASTM D1238-04)
Conventional Thickness:
0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm
Conventional Width:
1480mm
Conventional Length:
100 Yards
Mechanical Mold Temperature:
110℃-150℃
Key Words:
Eva Hot Melt Adhesive Film
Certificate:
ISO,RoHS,REACH
Amber Translucent EVA Hot Melt Adhesive Film Metal Glue Bonding Metal

Amber Translucent EVA Hot Melt Adhesive Film Metal Glue Bonding Metal

This product is a kind of thermoplastic hot melt adhesive film, entrusted with release paper, which can be heated and plasticized repeatedly.



This hot melt adhesive has good adhesion to textiles, metals, plastics, and wood, and has the characteristics of low use temperature and easy processing.



Physical Characteristics:

Color Amber translucent Release Protection Glassine release paper
Proportion 1.0±0.02g/cm³ Conventional Thickness 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm
Melting Range 65-90℃ (Tunsing DSC 214) Conventional Width 1480mm
Liquidity Index 27±10g/10mins (ASTM D1238-04) Conventional Length 100 yards
Activation Temperature 90-125℃ (Tunsing) Finished Product 1480mm*100yards/roll



The Applications of Amber Translucent EVA Hot Melt Adhesive Film Metal Glue Bonding Metal

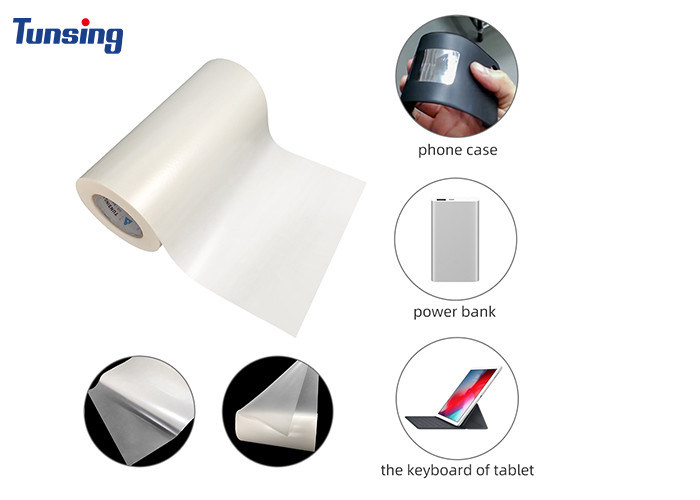

DS318 is used in 3C product packaging, battery packaging, and bonding of mobile power packaging materials.

Amber Translucent EVA Hot Melt Adhesive Film Metal Glue Bonding Metal 0


Recommended Bonding Conditions:

First Lamination Second Implanting
Mechanical Mold Temperature 110℃-140℃ Mechanical Mold Temperature 110℃-150℃
Hot Pressing Time 5-15 seconds Hot Pressing Time 8-25 seconds
Pressure 0.3-0.6mpa Pressure 0.3-0.6mpa

1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.

2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.

Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.

Tunsing firmly believes that the information content is reliable. However, the claims for possible problems will not be guaranteed for the components of a particular process. Before use, the manufacturer must determine the suitability of the product for the items to be used. The user must bear the risks and possible problems in the various manufacturing stages of testing and use. The Seller and the manufacturer shall not be liable for any direct injury, loss, damage or misuse.



FQA



1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(50.00%),South America(12.00%),South Asia(12.00%),North America(6.00%),Southeast Asia(5.00%),Africa(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(00.00%),Oceania(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Hot Melt Adhesive Film,Hot Melt Adhesive Powder,Hot Melt Adhesive Web Film,Hot Melt Adhesive Granule,Heat Seam Sealing Tape

4. why should you buy from us not from other suppliers?
1.ISO9001,ROHS,REACH & Oeko-Tex Standard 100 certification 2.More than fourteen years experience 3.Strict quality control 4.ERP system

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
