White High Elastic TPU Polyurethane Powder Hot Melt Adhesive For Heat Transfer

Product Details

Place of Origin: China

Brand Name: Tunsing

Certification: ISO,RoHS,REACH

Model Number: DS220

Payment & Shipping Terms

Minimum Order Quantity: 20kg/bag

Price: negotiate

Packaging Details: 20kg/bag

Delivery Time: 3-7 days

Payment Terms: D/A, T/T,PayPal

Supply Ability: 40000 kg/Month

Get Best Price
Highlight:

TPU Hot Melt Powder

,

Polyurethane TPU Hot Melt Powder

,

TPU Polyurethane Powder

Appearance:
White Powder
Composition:
TPU
Density ASTM D-792:
1.20±0.02 G/cm³
Melt Point DSC:
95-115 ℃
Melt Index ASTM D-1238:
30±7 G/10min
Hardness:
80±3 Shore A
Powder Size Range:
0-80 Um,80-200 Um,150-250 Um
Washing Resistance:
60℃
Appearance:
White Powder
Composition:
TPU
Density ASTM D-792:
1.20±0.02 G/cm³
Melt Point DSC:
95-115 ℃
Melt Index ASTM D-1238:
30±7 G/10min
Hardness:
80±3 Shore A
Powder Size Range:
0-80 Um,80-200 Um,150-250 Um
Washing Resistance:
60℃
White High Elastic TPU Polyurethane Powder Hot Melt Adhesive For Heat Transfer

White High Elastic TPU Polyurethane Powder Hot Melt Adhesive for Heat Transfer

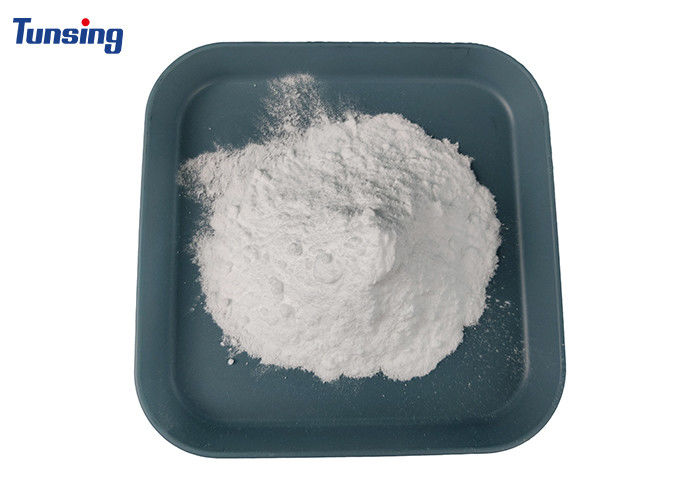

The product is a polyurethane thermoplastic powder hot melt adhesive.Soft handle and certain resilience, excellent workability.It has excellent bonding properties for fabrics, cotton, blended fabrics, TPU and PVC.



Physical Characteristics:

Property Criterion
Appearance White powder
Composition TPU
Density ASTM D-792 1.20±0.02 g/cm³
Melt Point DSC 95-115 ℃
Melt Index ASTM D-1238 30±7 g/10min
Hardness 80±3 Shore A
Powder size range 0-80 um
80-200 um
150-250 um
Resistance to yellowing (level) 2.0-3.0

Technical Parameters:

Bonding Parameters

( reference only)

Temperature 110-130℃
Press 1.5-2.5 kg/cm2
Time 8-15 S
Washing Resistance 40℃ Excellent
60℃ Good
90℃ /

Packaging and Storage Conditions:

Packaging 20KG in one PE bag
Storage Conditions Stored in dry unopened packaging at room temperature for 12 months. High temperature and pressure will cause agglomeration. The trays cannot be double-pressed.

Legal statement: The above data is based on the average of Tunsing Lab's multiple experiments with the general issues and recommendations of the product and application. It can not be construed as proof of the warranty for the product characteristics or the suitability of the particular area. Using units should be selected according to their own conditions and selective test. The user shall determine the suitability and fitness of the product for its intended use before using, and to take risks and possible problems in each manufacturing process of test and use. The seller and the manufacturer shall not bear any liability for any direct injury, loss, damage or misuse.

White High Elastic TPU Polyurethane Powder Hot Melt Adhesive For Heat Transfer 0

The Applications of TPU Polyurethane Powder Hot Melt Adhesive for Heat Transfer

DS220 is used in clothing, luggage, shoe materials and heat transfer industries.

White High Elastic TPU Polyurethane Powder Hot Melt Adhesive For Heat Transfer 1

Feedback

White High Elastic TPU Polyurethane Powder Hot Melt Adhesive For Heat Transfer 2



FAQ:

Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
