Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS214
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: USD 8-10 per kg
Packaging Details: 20kg per bag
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Appearance: |
White Powder |
Composition: |
POLYAMIDE |
Melt Point: |
108℃-120 ℃ |
Density: |
1.10g±0.02 G/cm³ |
Melt Index: |
30±3 G/10min |
Powder Size Range: |
0-80μm, 80-170μm |
Bonding Temperature: |
130℃ |
Bonding Time: |
14 S |
Appearance: |
White Powder |
Composition: |
POLYAMIDE |
Melt Point: |
108℃-120 ℃ |
Density: |
1.10g±0.02 G/cm³ |
Melt Index: |
30±3 G/10min |
Powder Size Range: |
0-80μm, 80-170μm |
Bonding Temperature: |
130℃ |
Bonding Time: |
14 S |

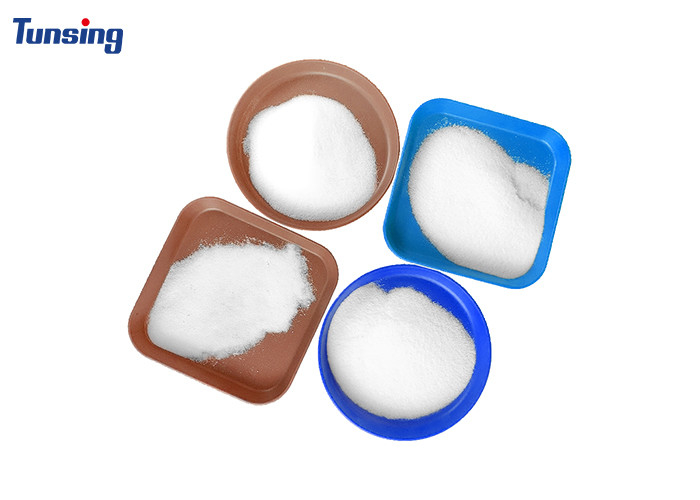

80-170 Micron CO Polyamide PA Heat Transfer Powder for Interlining
Heat Transfer Powder Description
This product is a thermoplastic copolyamide powdery hot melt adhesive. This product has excellent adhesion to textiles and has excellent resistance to water washing and dry cleaning by enzyme washing.
Heat Transfer Powder Technical Parameters:
| Property | Criterion |
| Appearance | White powder |
| Composition | CO-PA |
| Density ASTM D-792 | 1.10±0.02 g/cm³ |
| Melt Point DSC | 108-120 ℃ |
| Melt Index ASTM D-1238 | 30±3g/10min |
| Powder size range | 0-80 μm,80-170 μm |
Heat Transfer Powder Technical Parameters:
|
Bonding Parameters ( reference only) |
Temperature | 130℃ |
| Press | 3 kg/cm2 | |
| Time | 14 S | |
| Washing Resistance | 40℃ | Excellent |
| 60℃ | Excellent | |
| 90℃ | Good |
Attention:
1. Must be stored in dry unopened package. High temperature and pressure will cause agglomeration. The trays cannot be
double-pressed.
2. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
3. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
Heat Transfer Powder Application
DS214 is used in textiles and garments, automotive interiors, filters, shoe materials, heat transfer pastes, flocking pastes and bronzing pastes
Packaging and Storage Conditions:
| Packaging | 20KG PE inner bag + kraft paper bag |
| Storage Conditions | Stored in dry unopened packaging at room temperature for 12 months. High temperature and pressure will cause agglomeration. The trays cannot be double-pressed. |
Heat Transfer Powder Customer feedback
Heat Transfer Powder Package
It can ship by DHL, UPS, TNT and FedEX. It will need 5-7 days at usual. Also can by sea and air.
300-500g free sample for you to testing, you just pay to the shipping fee.
FQA
Q1) . How about your MOQ of your adhesive powder?
MOQ is 20 KG/25KG ( per bag)
Q2) . What type of hot melt adhesive powder do you have?
We have PA, TPU, EVA and PES hot melt adhesive powder.
We can accord your application to give your suitable type.
Q3). What is your Particle size ?
0-80um, 80-170um , 150um-250um ,200um-400um
Q4). Do you provide free sample? And how many days it will take?
Yes, we can provide 0.3-0.5kg free sample, only need you to pay the shipping cost.
We will make the sample within 1- 2 working
days and it will take 3-7days on the transportation.
