Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS220
Payment & Shipping Terms
Minimum Order Quantity: 1kg, 2kg, 5kg 20kg,
Price: 4.5-6dollar per kg
Packaging Details: 1kg per bag, 5kg per bag, 20kg per bag
Delivery Time: 5-7days
Payment Terms: T/T, PayPal
Supply Ability: 6000kg per day
Density ASTM D-792: |
1.20±0.02 G/cm³ |
Melt Point DSC: |
90-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
80-200 μm,100-200 μm,150-250 μm |
Other Names: |
Hot Melt Adhesive |
Type: |
Hot Melt Adhesive Powder |
Density ASTM D-792: |
1.20±0.02 G/cm³ |
Melt Point DSC: |
90-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
80-200 μm,100-200 μm,150-250 μm |
Other Names: |
Hot Melt Adhesive |
Type: |
Hot Melt Adhesive Powder |

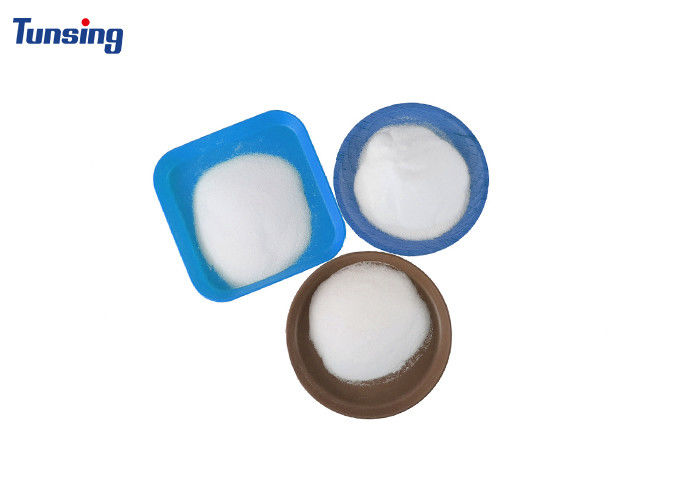

Dtf Heat Transfer 20kg Hot Melt Adhesive White Polyurethane Dtf Powder Tpu Powder
DTF Hot Melt Powder Description
DTF Powder Product model: DS220
Composition: DTF TPU hot melt adhesive powder is made from thermoplastic polyurethane, which is a synthetic polymer known for its excellent adhesive properties. It is formulated into a powdered form for easy application and activation during the heat transfer process.
Adhesive Activation: The hot melt adhesive powder is designed to melt and become adhesive when exposed to heat and pressure. During the heat press process, the adhesive powder liquefies and creates a bond between the printed design on the DTF film and the fabric surface.
Application Process: After printing the design onto the DTF film, the DTF TPU hot melt adhesive powder is applied over the printed area. This can be done by sprinkling or sifting the powder evenly onto the film, ensuring complete coverage of the design.
DTF TPU Hot Melt Powder Physical Characteristics:
Property | Criterion |
Appearance | White powder |
Composition | TPU |
Density ASTM D-792 | 1.20±0.02 g/cm³ |
Melting Point DSC | 90-115 ℃ |
Melt Index ASTM D-1238 | 28±8 g/10min |
Hardness | 80±3 Shore A |
Powder size range | 0-80 um,80-200um,150-250um |
Resistance to yellowing (level) | 2.0-3.0 |
DTF Powder Application:
DS220 is used in clothing, luggage, shoe materials and heat transfer industries.
DTF Powder Technical Parameters:
Bonding Parameters ( reference only) |
Temperature | 140-160℃ |
Press | 1.5-2.5 kg/cm2 | |
Time | 8-15 S | |
Washing Resistance | 40℃ | Excellent |
60℃ | Good | |
90℃ | / |
