Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS220
Payment & Shipping Terms
Minimum Order Quantity: 1kg, 2kg, 5kg 20kg,
Price: 4.5-6dollar per kg
Packaging Details: 1kg per bag, 5kg per bag, 20kg per bag
Delivery Time: 5-7days
Payment Terms: T/T, PayPal
Supply Ability: 6000kg per day
Density ASTM D-792: |
1.20±0.02 G/cm³ |
Melt Point DSC: |
90-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
80-200 μm,100-200 μm,150-250 μm |
Other Names: |
Hot Melt Adhesive |
Type: |
Hot Melt Adhesive Powder |
Density ASTM D-792: |
1.20±0.02 G/cm³ |
Melt Point DSC: |
90-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
80-200 μm,100-200 μm,150-250 μm |
Other Names: |
Hot Melt Adhesive |
Type: |
Hot Melt Adhesive Powder |

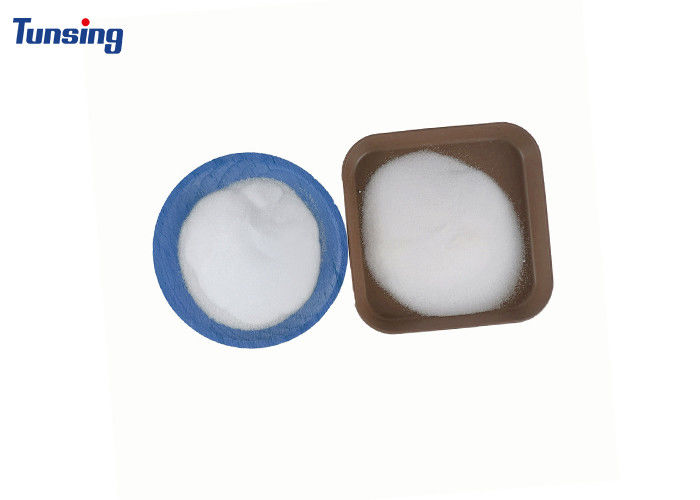

Heat Transfer Printing High Elasticity 80-200um TPU DTF Hot Melt Adhesive Powder
DTF Hot Melt Powder Description
DTF Powder Product model: DS220
Post-Transfer Steps: After the heat press process, there may be additional steps recommended by the adhesive powder manufacturer. These steps can include curing the transferred design for a specific duration, removing any excess powder or residues, and performing additional treatments such as washing or applying protective coatings to enhance durability.
Design Compatibility: DTF TPU hot melt adhesive powder allows for the transfer of various design types, including intricate patterns, detailed images, and even gradients. It provides excellent resolution and clarity in the transferred design, allowing for customization and creativity.
Layering and Multicolor Designs: DTF TPU hot melt adhesive powder enables the layering of multiple colors and designs. This means you can create multicolor and complex designs by applying different colored powders sequentially and heat pressing each layer.
DTF TPU Hot Melt Powder Physical Characteristics:
Property | Criterion |
Appearance | White powder |
Composition | TPU |
Density ASTM D-792 | 1.20±0.02 g/cm³ |
Melting Point DSC | 90-115 ℃ |
Melt Index ASTM D-1238 | 28±8 g/10min |
Hardness | 80±3 Shore A |
Powder size range | 0-80 um,80-200um,150-250um |
Resistance to yellowing (level) | 2.0-3.0 |
DTF Powder Application:
DS220 is used in clothing, luggage, shoe materials and heat transfer industries.
DTF Powder Technical Parameters:
Bonding Parameters ( reference only) |
Temperature | 140-160℃ |
Press | 1.5-2.5 kg/cm2 | |
Time | 8-15 S | |
Washing Resistance | 40℃ | Excellent |
60℃ | Good | |
90℃ | / |
