Thermal Conductive Hot Melt Adhesive Film 200m Long 29mm Wide Glassine Release Paper

small.img.alt small.img.alt

Large Image :  Thermal Conductive Hot Melt Adhesive Film 200m Long 29mm Wide Glassine Release Paper

Product Details:
Place of Origin: Shenzhen City, Guangdong Province , China
Brand Name: None
Certification: SGS , ISO9001:2015, REACH, ROHS, OEKO-TEX
Model Number: DS-6CA
Payment & Shipping Terms:
Minimum Order Quantity: 20 rolls in a carton if in stock.
Price: USD480.00/roll
Packaging Details: Carton size: 40cm*40cm*17cm. A carton of twenty rolls. All of them are vacuum packed.
Delivery Time: 3-15 working days
Payment Terms: Western Union, L/C, T/T, PayPal, Alibaba Trade Assurance
Supply Ability: 40000 square meters per day
Detailed Product Description
Color: Black Density: 1.±0.02 G/cm³
Melting Rang ( DSC ): 80-100℃ Melt Flow Index: 20±10g/10min
Release Liner: Glassine Release Paper Conventional Thickness: 55±5μm
Conventional Width: 29mm Length: 200m
Finished Products Specification: 55um*29MM*200M
High Light:

hot melt adhesive film


pressure sensitive adhesive tape

200M long 29mm wide Black Conventional Szie Thermal Conductive Hot Mlet Adhesive Tape


Product: DS-6CA


Conductive Hot Mlet Adhesive Tape Description:

The hot melt adhesive has good electrical conductivity and is packaged by a dual interface smart card. Excellent adhesion to PVC, ABS, PC, FR-4 and other materials.

This product is a large molecular weight structural hot melt tape. The superior cohesion ensures that there is no structural breakage in the thrust and bending tests after bonding, while maintaining a balanced bond strength with the chip and the card base. Meets the requirements of IC7816 for chip package fastness.


Conductive Hot Mlet Adhesive Tape Application:

DS-6CA is suitable for thermal packaging of dual interface bank cards and social security cards.


Conductive Hot Mlet Adhesive Tape Composition:

Polyamide synthesis modification


Packaging & Delivery:

Carton size: 40cm*40cm*16.5cm
A carton of twenty rolls.
All of them are vacuum packed.
Shipped in 3-15 days after payment.


Conductive Hot Mlet Adhesive Tape Physical Characteristics:



Release Line

Glassine release paper

Density ASTM D-792

1.±0.02 g/cm³

Conventional Thickness


Melting Range DSC


Conventional Width


Melt Index ASTM D-1238


Conventional Length


Finished Products



Smart Card Tape Recommended Bonding Conditions:

Flat initial chip backing

Flat secondary packaging:

Mechanical mold temperature: 140 ℃ to 160 ℃

Mechanical mold temperature: 170 ℃ to 200 ℃

Adhesive time: 0.6s-1.2s

Sealing time: 1.4 s-2.4 S

Pressure: 0.25-0.4 mpa

Pressure: 0.25-0.4mpa



1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.


2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.

Detail Images:

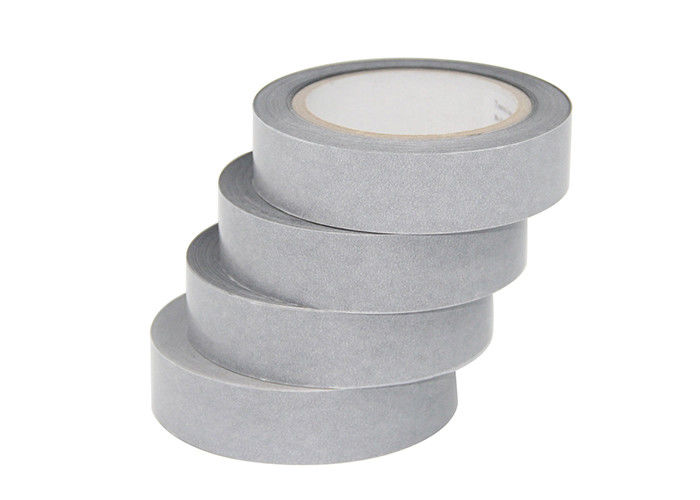

Thermal Conductive Hot Melt Adhesive Film 200m Long 29mm Wide Glassine Release Paper 0
Application Images:
Thermal Conductive Hot Melt Adhesive Film 200m Long 29mm Wide Glassine Release Paper 1


Thermal Conductive Hot Melt Adhesive Film 200m Long 29mm Wide Glassine Release Paper 2


Our Services:

1, Your inquiry will be replied within 24 hours and online service is available all the time.
2, Well-trained & professional sales persons are here ready to answer all your questions and handle the problems.
3, Prompt delivery time: within 15 days after agreement.
4, Flexible payment terms: T/T, L/C, O/A, Western Union, Paypal, Escrow, etc.
5, Your business relationship with us will be confidential to any third party.
6, Good after-sale service offered, please get back if you got question.





1 .How about hot melt adhesive film?

It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point,it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands,then recommend you right products to you.


2.Do you accept OEM or ODM?

Yes ,we accept OEM and ODM,we are professional heat transfer material manufacturer ,having more than 10years experience.able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.


3.How do you transport the products?

If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,

we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way.Of course if you have other better idea about transport, we will accept it.


4. May I have your samples?

If you need some sample for reference,please let us know your fully address/ship

mode with courier,and we will arrange sample for your reference.


5. How long is the lead time?

Sample lead time:3-7 days

Bulk lead time:7-10 days(depends on order quantity)


6. How do I pay for my order?

We accept L/C ,T/T ,Western Union , PayPal.
