Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS8501
Payment & Shipping Terms
Minimum Order Quantity: 100y
Price: USD 0.3-1.5 per yard
Packaging Details: 1 roll per carton
Delivery Time: Shipped in 3-5 days after receive payment
Payment Terms: T/T
Supply Ability: 3000 thousand meter per year
Colour: |
Transparent |
Proportion: |
1.18±0.02g/cm³ |
Opening Time: |
10min |
Melt Flow Index: |
5±3g/10mins （ASTM D1238-04） |
Hardness: |
81±3 （Shore A） |
Melting Range: |
110-140℃ (Tunsing DSC 214) |
Activation Temperature: |
125-174℃ （Tunsing） |
Release Protection: |
Glassine Release Paper |
Thickness: |
0.0125mm-0.15mm |
Width: |
5mm-1480mm |
Colour: |
Transparent |
Proportion: |
1.18±0.02g/cm³ |
Opening Time: |
10min |
Melt Flow Index: |
5±3g/10mins （ASTM D1238-04） |
Hardness: |
81±3 （Shore A） |
Melting Range: |
110-140℃ (Tunsing DSC 214) |
Activation Temperature: |
125-174℃ （Tunsing） |
Release Protection: |
Glassine Release Paper |
Thickness: |
0.0125mm-0.15mm |
Width: |
5mm-1480mm |
similar Bemis 3415 soft tpu polyutethane hot melt adhesive tpu film for fabric

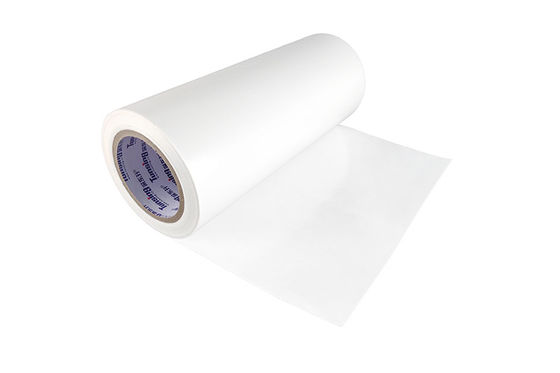

TPU Polyutethane hot melt adhesive film Product Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
Composition: Polyurethane synthesis modification
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Curing Time | 1min | Width | 5mm-1480mm |
| Melt Flow Index | 5±3g/10mins (ASTM D1238-04) | Conventional Thickness | 0.03mm,0.05mm,0.08mm,0.10mm |
| Hardness | 81±3 (Shore A) | Conventional Width | 1380mm |
| Melting Range | 110-140℃ (Tunsing Melting point instrument) | Conventional Length | 100 yards |
| Activation Temperature | 125-174℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
TPU Polyutethane hot melt adhesive film Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 150℃-170℃ | Mechanical Mold Temperature | 160℃-200℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
.
TPU Polyutethane hot melt adhesive film
TPU Polyutethane hot melt adhesive film Applications:
DS8614 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
TPU Polyutethane hot melt adhesive film Customer Feedback:
TPU Polyutethane hot melt adhesive film Contact me
TPU Polyutethane hot melt adhesive film package:
The width is 138cm, length is 100yards per roll.
1 rolls by 1 carton.
It can ship by DHL/FedEx/TNT/UPS/air for 3-7days.
By sea for 15-30days.
TPU Polyutethane hot melt adhesive film Company information
We have our own R & D. Our company has implemented ISO9001:2015 quality management system since 2014. All orders, from received order-order review-PMC plan production-production-quality inspection-inbound-outbound, strictly follow the standardization process and fully guarantee the quality and sustained stability. At the same time, each order is an ERP system. Each single finance is independently accounted for costs. These are our test machine, please see the picture below.
FAQ
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt
point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different
usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to
assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know.
3. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship mode with courier ,and we will arrange sample for your reference.
4. How long is the lead time?
Sample lead time:1-3days
Bulk lead time:3-10 days(depends on order quantity)
6. How do I pay for my order?
We accept T/T , Paypal.
