Product Details
Place of Origin: China, SHEN
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS220
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: USD 5-5.5 per kg
Packaging Details: 20kg per bag
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
DTF TPU Powder |
Melt Point: |
95-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
0-80μm, 80-200μm, 150-250μm. |
Resistance To Yellowing: |
2.0-3.0 |
Bonding Temperature: |
110℃-130℃ |
Keywords: |
DTF TPU Powder |
Melt Point: |
95-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
0-80μm, 80-200μm, 150-250μm. |
Resistance To Yellowing: |
2.0-3.0 |
Bonding Temperature: |
110℃-130℃ |
High Elasticity Polyurethane DTF TPU Powder for Hot Melt Powder Coating Machine
DTF TPU Powder Description

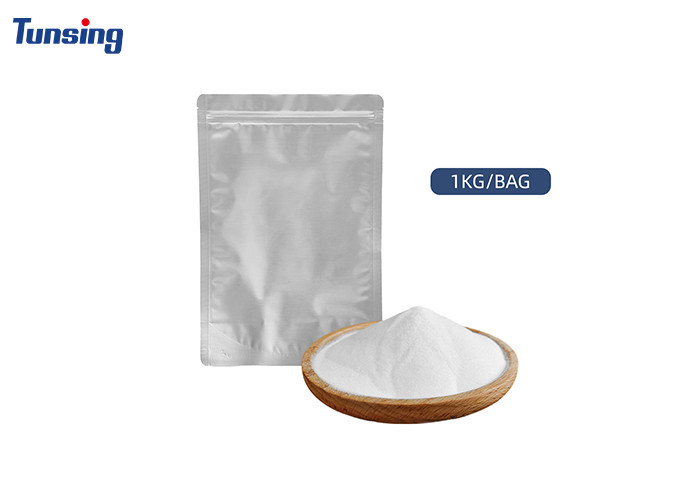

DS220 is a polyurethane thermoplastic powder hot melt adhesive.
It has Soft handle and certain resilience, excellent workability.
It has excellent bonding properties for fabrics, cotton, blended fabrics, TPU and PVC.
DTF TPU Powder Technical Parameters:
| Property | Criterion |
| Appearance | White powder |
| Composition | TPU |
| Density ASTM D-792 | 1.20±0.02 g/cm³ |
| Melt Point DSC | 95-115 ℃ |
| Melt Index ASTM D-1238 | 30±7 g/10min |
| Hardness | 80±3 Shore A |
| Powder size range | 0-80μm, 80-200μm, 150-250μm |
| Resistance to yellowing (level) | 2.0-3.0 |
DTF TPU Powder Technical Parameters:
|
Bonding Parameters ( reference only) |
Temperature | 110-130℃ |
| Press | 1.5-2.5 kg/cm2 | |
| Time | 8-15 S | |
| Washing Resistance | 40℃ | Excellent |
| 60℃ | Good |
Characteristics
Tpu hot melt adhesive powder
1. Soft and good elasticity
2. Good viscous
3. Good fastness after washing, good solution resistance
PES hot melt adhesive powder
1. Use tobond single layer or multe layers
2. Good elasticity
3. Good fastness after washing or dey clean
Attention:
1. Must be stored in dry unopened package. High temperature and pressure will cause agglomeration. The trays cannot be
double-pressed.
2. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
3. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
WHY CHOOSE US
1. Customized Service
2. Professional Afer -sales
3. Low Price
4. High Quality
Save much cost and money.
Make printing more easy.
5. Safety
Faster and cheaper.
Environment-friendly. Non-toxic.No peculiar smells. NO toluene.
DTF TPU Powder Application
DS220 is used in clothing, luggage, shoe materials and heat transfer industries.
Customer feedback
DTF TPU Powder Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
300-500g free sample for you to testing, you just pay to the shipping fee.
| Packaging | 20KG in one PE bag |
| Storage Conditions | Stored in dry unopened packaging at room temperature for 12 months. High temperature and pressure will cause agglomeration. The trays cannot be double-pressed. |
FQA
Q1). Do you provide free sample? And how many days it will take?
Yes, we can provide 0.3-0.5kg free sample, only need you to pay the shipping cost.
We will make the sample within 1- 2 working
days and it will take 3-7days on the transportation.
Q2). What is your lead time ?
2-7 days , depending on the quantity , we almost have safe stock ,
Q3). How do I pay for my order?
We accept T/T , Paypal and alibaba trade assurance order
