Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: HBCDD , ISO9001
Model Number: DS-5
Payment & Shipping Terms
Minimum Order Quantity: 200M
Price: negotiable
Packaging Details: 200 m/roll, 20 roll/carton
Delivery Time: 5-7 work days
Payment Terms: T/T ,PayPal
Supply Ability: 10000000 Yards / Month
Keyword: |
Hot Melt Adhesive Tape |
Width: |
29mm |
Thickness: |
55±5μm |
Length: |
200m |
Composition: |
Polyamide |
Application: |
Thermal Packaging Of IC Card, SIM Card, Etc |
Keyword: |
Hot Melt Adhesive Tape |
Width: |
29mm |
Thickness: |
55±5μm |
Length: |
200m |
Composition: |
Polyamide |
Application: |
Thermal Packaging Of IC Card, SIM Card, Etc |

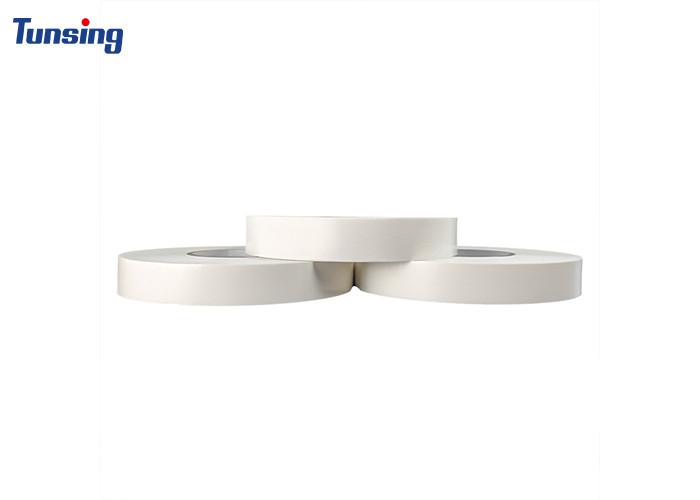

29mm Width Polyamide Hot Melt Adheseive Tape For Credit Card SIM Card
Best Stickity Polyamide Hot Melt Adhseive Tape For Credit Card
Composition:
Polyamide synthesis modification
Hot melt adhesive tape descipation:
1. The hot melt adhesive is used for embedding of contact smart cards.Excellent adhesion to PVC, ABS, PC, FR-4 and other materials.
2.This product is a large molecular weight structure type hot-melt tape.
3. a balanced bond strength with the chip and the card base.
Melting Range | 90-120℃ |
Melt Flow Index | 20±10g/10min |
Finished Product | 0.055mm*29.2mm*200m |
Conventional Thickness | 0.055mm±0.008mm |
Recommended Bonding Conditions:
First Lamination: | Second Implanting: |
Machine Setting: 140℃-160℃ | Machine Setting: 170℃-190℃ |
Dwell Time: 0.6S-1.2S | Dwell Time: 0.6S-1.2S |
Pressure: 0.25-0.4mpa | Pressure: 0.25-0.4mpa |
Hot melt adhesive tape application:
DS-5 is suitable for heat sealing of IC cards, SIM cards, financial social security cards, and dual interface bank cards.
Free sample:
We can provide you 1~2meters but only you need to pay the freight ,please give me you adress,office adress,zip code,contact name,email,telephone.
Detail picture:
Hot melt adhesive tape application picture:
Packing and delivery:
Packing:200m/roll,20 roll/carton
Delivery:After we receive the payment within 3~7 working days.
Certification:
Our Company:
Shenzhen Tunsing Plastic Products co., Ltd.
Our company was founded in 2007, With ten years of hot melt adhesive development, professional polymer technology team, research and development, production, sales as a whole.
The company has passed ISO9001:2008 enterprise management certification system.
The ISO9001 system control standards are strictly enforced from the production of raw materials to the production of film.
FAQ :
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal
