Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS220
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 kg per month
Name: |
DTF Powder |
Composition: |
TPU |
Model: |
DS220 |
Melt Point: |
95-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
0-80μm,80-200μm,150-250μm |
Name: |
DTF Powder |
Composition: |
TPU |
Model: |
DS220 |
Melt Point: |
95-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
0-80μm,80-200μm,150-250μm |

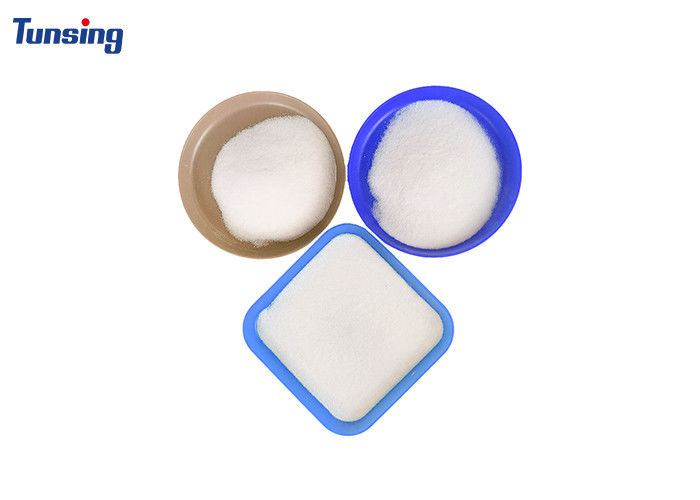

1kg 20 Kg White Tpu Transfer Glue Adhesive Dtf Hot Melt Powder For DTF
Adhesive Properties: DTF TPU hot melt adhesive powder has excellent adhesion properties, allowing it to bond effectively with various substrates, including fabrics, textiles, and other materials commonly used in apparel and textile printing.
Activation by Heat: The adhesive powder is applied to the printed design on the PET film, and when heat is applied during the transfer process, the powder melts and becomes adhesive. This enables the transfer of the design from the PET film to the target material.
Versatility: DTF TPU hot melt adhesive powder is compatible with different types of fabrics, such as cotton, polyester, nylon, and blends. It provides strong adhesion on these materials, ensuring that the printed design remains intact even after washing and wearing.
Durability: Once the adhesive powder is activated and bonded to the fabric, it forms a durable and flexible bond. This ensures that the transferred design maintains its quality, vibrancy, and integrity over time, even with regular use and washing.
DTF powder Physical Characteristics:
| Property | Criterion |
| Appearance | White powder |
| Composition | TPU |
| Density ASTM D-792 | 1.20±0.02 g/cm³ |
| Melting Point DSC | 95-115 ℃ |
| Melt Index ASTM D-1238 | 30±7 g/10min |
| Hardness | 80±3 Shore A |
| Powder size range | 0-80 um,80-200um,150-250um |
| Resistance to yellowing (level) | 2.0-3.0 |
DTF powder Application:
DS220 is used in clothing, luggage, shoe materials and heat transfer industries.
DTF powder Technical Parameters:
|
Bonding Parameters ( reference only) |
Temperature | 110-130℃ |
| Press | 1.5-2.5 kg/cm2 | |
| Time | 8-15 S | |
| Washing Resistance | 40℃ | Excellent |
| 60℃ | Good | |
| 90℃ | / |
Prepare the Design: Create or select the desired design that you want to transfer onto the fabric or textile. This design will be printed onto the PET film.
Print the Design: Use a DTF printer to print the design onto a transparent PET film using specialized inks. Ensure that the design is printed in reverse/mirror image to ensure correct orientation when transferred.
Apply the TPU Powder: Sprinkle or distribute the DTF TPU hot melt adhesive powder evenly over the printed design on the PET film. Use a sifter or similar tool to achieve an even and thin layer of powder. Shake off any excess powder.
Activate the Powder: Place the PET film with the printed design and TPU powder facing down onto the target material (such as fabric or textile). Apply heat and pressure using a heat press machine or similar equipment. The heat and pressure will activate the TPU powder, causing it to melt and bond with the fabric.
