Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS220
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 kg per month
Name: |
DTF Powder |
Composition: |
TPU |
Model: |
DS220 |
Melt Point: |
95-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
0-80μm,80-200μm,150-250μm |
Name: |
DTF Powder |
Composition: |
TPU |
Model: |
DS220 |
Melt Point: |
95-115 ℃ |
Hardness: |
80±3 Shore A |
Powder Size Range: |
0-80μm,80-200μm,150-250μm |

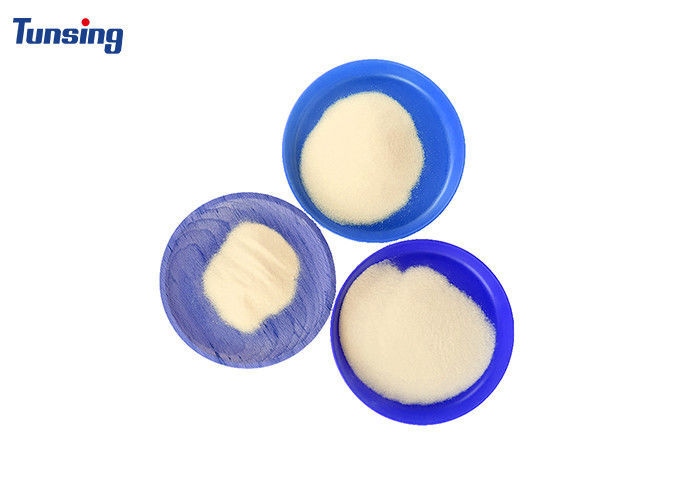

1kg 5kg DTF Printing White Heat Transfer DTF Powder Hot Melt Adhesive Powder
Flexibility: DTF TPU hot melt adhesive powder allows for flexibility in the transferred design. The adhesive remains flexible and moves with the fabric, accommodating stretching and bending without compromising the bond. This flexibility is particularly beneficial for garments and textiles that require comfort and freedom of movement. Other adhesive methods may vary in their flexibility and may not offer the same level of adaptability.
Washability: DTF TPU hot melt adhesive powder provides excellent washability. The transferred design withstands repeated washing cycles without significant fading or loss of adhesion. Other adhesive methods may have varying degrees of washability, and some may require special care or maintenance to preserve the design.
Speed and Efficiency: DTF TPU hot melt adhesive powder application process can be relatively fast and efficient. The powder can be applied in a controlled manner, and once activated by heat, the transfer process is typically quick. Other adhesive methods may involve longer drying or curing times, which can extend the overall production timeline.
DTF powder Physical Characteristics:
| Property | Criterion |
| Appearance | White powder |
| Composition | TPU |
| Density ASTM D-792 | 1.20±0.02 g/cm³ |
| Melting Point DSC | 95-115 ℃ |
| Melt Index ASTM D-1238 | 30±7 g/10min |
| Hardness | 80±3 Shore A |
| Powder size range | 0-80 um,80-200um,150-250um |
| Resistance to yellowing (level) | 2.0-3.0 |
DTF powder Application:
DS220 is used in clothing, luggage, shoe materials and heat transfer industries.
DTF powder Technical Parameters:
|
Bonding Parameters ( reference only) |
Temperature | 110-130℃ |
| Press | 1.5-2.5 kg/cm2 | |
| Time | 8-15 S | |
| Washing Resistance | 40℃ | Excellent |
| 60℃ | Good | |
| 90℃ | / |
Apply TPU powder: Sprinkle DTF TPU hot melt adhesive powder evenly on the printed pattern on the PET film. Use a sieve or similar tool to obtain an even, thin layer of powder. Shake off excess powder.
Activated powder: A PET film with a printed pattern and TPU powder is placed face down on the target material, such as a fabric or textile. Use a hot press or similar device to heat and pressurize. Heat and pressure activate the TPU powder, causing it to melt and bind to the fabric.
Transfer process: Maintain heat and pressure for the recommended time specified by the manufacturer or according to tests. This allows the TPU powder to completely melt and creates a strong bond between the design and the fabric.
Cooling and release: After the specified transfer time, the pressure is released from the hot press and the PET film is carefully removed from the fabric. Allow the fabric to cool completely before handling.
Finishing: Once the fabric has cooled, you can perform any necessary finishing steps, such as trimming excess threads or performing a post-treatment process specific to the fabric type.
