Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: RoHs, REACH
Model Number: DS3412
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: negotiable
Packaging Details: 1-4 rolls in one box,each with black PP bag
Delivery Time: 3 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000000 yards per month
Density: |
1.14±0.02g/cm³ |
Rheological Temperature: |
102-125℃ |
Proportion: |
1.14±0.02g/cm³ |
Hardness: |
52±2 (Shore A) |
Opening Time: |
12min |
Normal Thickness: |
0.05mm |
Density: |
1.14±0.02g/cm³ |
Rheological Temperature: |
102-125℃ |
Proportion: |
1.14±0.02g/cm³ |
Hardness: |
52±2 (Shore A) |
Opening Time: |
12min |
Normal Thickness: |
0.05mm |

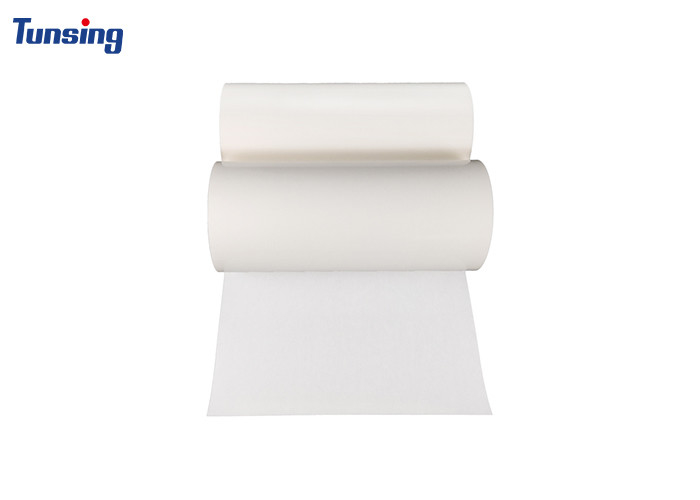

Seamless Bra Bonding TPU Hot Melt Adhesive Film 0.05mm Thickness 65A Hardness
Hot Melt Adhesive Film Description:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized.
This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
Hot Melt Adhesive Film Characteristics:
Colour | Transparent | Release Protection | Glassine Release Paper |
Proportion | 1.14±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
Opening Time | 12min | Width | 5mm-1480mm |
Melt Flow Index | 6±3g/10mins (ASTM D1238-04) | Conventional Thickness | 0.05mm,0.08mm,0.10mm |
Hardness | 52±2 (Shore A) | Conventional Width | 1380mm |
Rheological temperature | 102-125℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
Hot Melt Adhesive Film Recommended Bonding Conditions:
First Lamination | Second Implanting | ||
Mechanical Mold Temperature | 145℃-165℃ | Mechanical Mold Temperature | 155℃-185℃ |
Time | 5-15 seconds | Time | 8-25 seconds |
Pressure | 0.3-0.6mpa | Finished Product | 1380mm*100yards/roll |
Hot Melt Adhesive Film application
DS8502 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
Hot Melt Adhesive Film buyer feedback
Hot Melt Adhesive Film Package
Our conventional width is 138cm, 100yards per roll.
1 roll in per carton.
About the free sample, we can provide the 3-5yards free sample for you to do the test.
