Home > products > TPU Hot Melt Adhesive Film > Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane

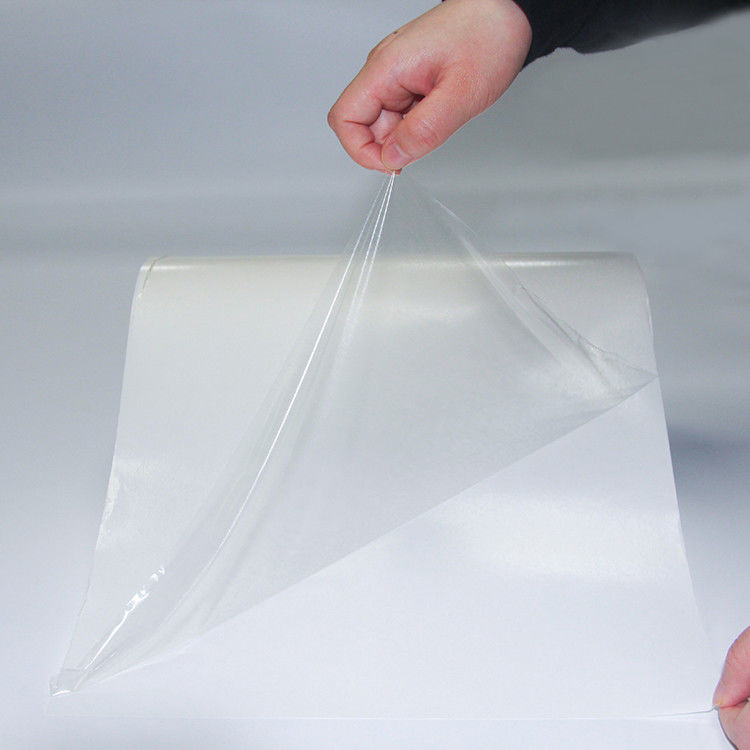

Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane

Product Details

Place of Origin: China

Brand Name: Tunisng

Certification: SGS , ISO9001

Model Number: DS3412H

Payment & Shipping Terms

Minimum Order Quantity: 100Y

Price: negotiable

Packaging Details: 1PC/PE FILM, 100yard/roll,1roll/CTN, or it's up on the customer's option

Delivery Time: 5-7days

Payment Terms: Western Union, L/C, T/T, PayPal

Supply Ability: 40000 Square meters per day

Get Best Price
High Light:

adhesive plastic film

,

hot melt glue film

Color:
Transparent
Melting Point(°C):
120°C -130°C
Melt Index(g/10min):
7±4g/10min; Condition:ASTMD1238-04
Hot Pressing Temperature(°C):
145°C -175°C
Physical Form:
Glassine Release Paper
Conventional Thickness:
0.05mm
Conventional Width:
1524mm
Length:
100 Yards
Density:
1.15±0.02g/cm3
Washing Resistant Time:
60°C/72H
Hardness:
65±2 Shore A
Color:
Transparent
Melting Point(°C):
120°C -130°C
Melt Index(g/10min):
7±4g/10min; Condition:ASTMD1238-04
Hot Pressing Temperature(°C):
145°C -175°C
Physical Form:
Glassine Release Paper
Conventional Thickness:
0.05mm
Conventional Width:
1524mm
Length:
100 Yards
Density:
1.15±0.02g/cm3
Washing Resistant Time:
60°C/72H
Hardness:
65±2 Shore A
Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane



 0.05mm Thickness Thermoplastic Hot Melt Polyurethane TPU Adhesive Film For - Free Underwear



tpu adhesive film Quick detail:

DS3412H is thermoplastic material, suitable for a variety of materials, it can be heat plasticized adhesive repeated. It has excellent adhesion for Lycra, spandex, nylon, excellent products such as soft feel and super elastic fabric hot pressing adhesive etc. With super soft feel, high resilience.





tpu adhesive film Applications:

DS3412H development direction and application is for one-piece bra, seamless underwear of bonding.

 Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane 0



tpu adhesive film Physical Characteristics:

Color

transparent

Release liner

Glassine release paper

Density

1.15±0.02g/cm3

Thickness

0.0125mm-1mm

Opening Time

12min

Width

5mm-1524mm

Hardness

65±1=2 Shore A

Conventional thickness

0.025mm,0.05mm,0.10mm

Melt Flow Index

7±4g/10min;

Condition ASTM D1238-04

Conventional Width

1524mm

Rheology Temperature

120°C -130°C

Length

100yards

Operating Temperature



145°C -175°C

Finished products specification

1524mm*100yards/roll



NOTICE:

1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.

2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.



 Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane 1

The conventional width is 1.524m, but we can cut different width according customer request.





Customer Feedback:

 Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane 2



Shipping & Packing:

Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)

 Underwear TPU Hot Melt Adhesive Film 0.05mm Thickness Thermoplastic Polyurethane 3



Why Choose Us

1, more than 10 years experience in production.

2, well-known products: Sichuan Famous Brand.

3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise

4, Excellent quality and Competitive price, OEM is available.

5, Stable supply: an extensive range of stock.

6, The whole process from material to end products is under supervision.



FAQ

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
