Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: ISO9001, RoHs
Model Number: DS002
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: Shinpped in 3-5 days after payment
Payment Terms: L/C,, T/T,, Western Union,paypal
Supply Ability: 4000 yards a day
Color: |
Sky Blue Transparent |
Melting Point: |
80℃-90℃ |
Melt Flow Index: |
17±5g/10min; Condition:ASTM D1238-04 |
Operating Temperature: |
120°C -150°C |
Washing/time: |
40°C /72H |
Finished Products Specification: |
48cm*100yards/roll |
Length: |
100 Yards |
Conventional Width: |
500mm,1000mm |
Width Range: |
5mm-1500mm |
Conventional Thickness: |
0.10mm, 0.12mm，0.15mm |
Color: |
Sky Blue Transparent |
Melting Point: |
80℃-90℃ |
Melt Flow Index: |
17±5g/10min; Condition:ASTM D1238-04 |
Operating Temperature: |
120°C -150°C |
Washing/time: |
40°C /72H |
Finished Products Specification: |
48cm*100yards/roll |
Length: |
100 Yards |
Conventional Width: |
500mm,1000mm |
Width Range: |
5mm-1500mm |
Conventional Thickness: |
0.10mm, 0.12mm，0.15mm |

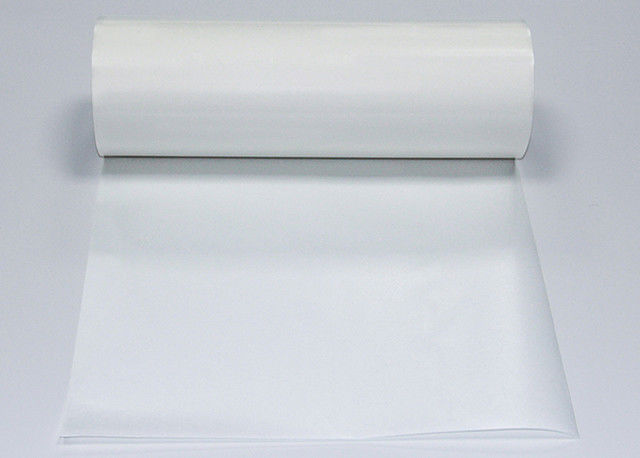

Length 100 yards Melting point 85℃ Hot Melt Adhesive Pa Film For Label
Hot Melt Adhesive Film Description:
This product is a thermoplastic adhesive, suitable for wide range of materials. It performs an excellent adhesion for Fabrics, textiles, nylon etc. This adhesive exhibit excellent wash and dry cleaning and chemical additives.
Hot Melt Adhesive Film Applications:
DS002 development direction and application is for garments accessories, footwear, handbags, luggage, embroidery, crafts of adhesive.
Hot Melt Adhesive Film Composition:
Polyamide
Hot Melt Adhesive Film Physical Characteristics:
|
Color |
Sky blue transparent |
Release liner |
Glassine release paper |
|
Density |
1.15±0.02g/cm3 |
Conventional thickness |
0.05mm, 0.08mm,0.1mm, 0.12mm,0.15mm,0.18mm |
|
Melting point |
80℃-90℃ |
Width range |
5mm-1500mm |
|
Melt Flow Index |
17±5g/10min; Condition:ASTM D1238-04 |
Conventional Width |
480,1000,1380,1480mm |
Operating Temperature |
120°C -150°C |
Length |
100 yards |
|
Washing/time
|
40°C /72H |
Finished Products Specification |
48cm*100yards/roll |
Hot Melt Adhesive Film Recommended Bonding Conditions:
|
Flat Press |
Second Flat Press |
|
Machine Setting: 110℃-130℃ |
Machine Setting: 120℃-150℃ |
|
Dwell Time: 5-15 seconds |
Dwell Time: 8-25seconds |
|
Pressure: 0.3-0.6mpa |
Pressure: 0.3-0.6mpa |
1,Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2,In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular applicationdamage, direct or consequential, arising out of the use, misuse or inability to use the product.
NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchantability and fitness for a particular purpose. The following is made in lieu of any such warranties. Tunsing believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Our company has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
In order to strengthen the management of quality , we purchase many kinds of test equipments.
for example : Melt Flow Index Machine Differential Scanning Calorimetry Peel Force Tester High Low Temperature Tester Chamber Bend Distortion Tester Thrust Tester
1, Q: How will you pack the product?
A: We pack with paper cartons, usually 4 or 6 rolls per carton for hand stretch film; 1 roll for machine stretch film; 56 or 84 rolls for mini stretch film and 27 rolls per pallet for jumbo stretch film.
2, Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: The details are in the above forms. If your specification is different, you need to tell us the size of the carton, and then we will calculate for you accordingly.
3, Q: How about the adhesive of the stretch film?
A: It is self adhesive stretch film. We can produce one side and two sides adhesive but usually one side adhesive. Besides, the stickiness can be controlled as customized.
4, Q: How many layers of the stretch film can your equipment make?
A: Our equipment can produce 1/2/3 layers stretch film.
5, Q: Do you accept OEM?
A: Yes, we do.
6,Q: What’s your payment term?
A: We accept T/T, L/C, O/A, Western Union, Paypal, Escrow, or customized if it is acceptable.
