Home > products > TPU Hot Melt Adhesive Film > Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood

Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood

Product Details

Place of Origin: China

Brand Name: TUNSING

Certification: ISO SGS Oeko-Tex

Model Number: DS8610

Payment & Shipping Terms

Minimum Order Quantity: 100yards

Price: negotiable

Packaging Details: 1-4 rolls in one box,each with black PP bag

Delivery Time: 3 days after payment

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 3000000 yards per month

Get Best Price
Highlight:

adhesive plastic film

,

hot melt glue film

Material:
TPU
Density:
1.2 G/cm3
Melt Point (DSC):
55-60°C
MI G/10mins:
20±5
Hardness:
97A
Normal Thickness:
0.05mm,0.10mm, 0.12mm, 0.15mm
Material:
TPU
Density:
1.2 G/cm3
Melt Point (DSC):
55-60°C
MI G/10mins:
20±5
Hardness:
97A
Normal Thickness:
0.05mm,0.10mm, 0.12mm, 0.15mm
Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood

Low temperature TPU Hot Melt Adhesive Film for back of PVC Film Laminate on MDF Wood



Description:

This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has low use temperature, easy processing and excellent cold resistance.

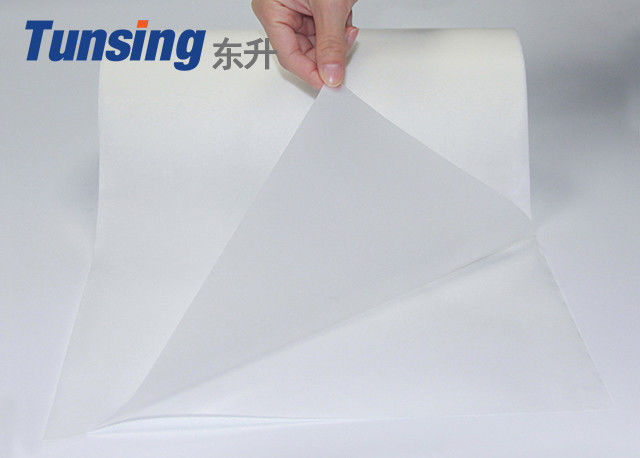

Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood 0Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood 1



Physical characteristics:

Colour Milky white translucent Release Protection Glassine Release Paper
Proportion 1.20±0.02g/cm³ Thickness 0.0125mm-0.15mm
Opening time 5min Width 5mm-1480mm
Liquidity Index 37±10g/10mins (ASTM D1238-04) Conventional Thickness

0.05mm,0.08mm,0.10mm

0.12mm, 0.15mm

Hardness 97±3 (Shore A) Conventional Width 1380mm
Melting Range 55-75℃ (Tunsing DSC 214) Conventional Length 100 yards
Activation Temperature 77-116℃ (Tunsing) Finished Product 1380mm*100yards/rol



Recommended Bonding Conditions:

Flat Press Second Flat Press
Machine Setting: 90-110 Machine Setting: 90-130
Dwell Time: 5-15 seconds Dwell Time: 8-25 seconds
Pressure: 0.3-0.6mpa Pressure: 0.3-0.6mpa





Application:



DS8610 development direction and application is on clothing, footwear, textile accessories, handbags, bags, sports gear, the material of adhesive.

Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood 2

Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood 3



Customer Feedback:

Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood 4



Shipping & Packing:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
and by air, 30-40 days by sea

Low Temperature TPU Hot Melt Adhesive Film Back PVC Laminate On MDF Wood 5



FAQ

1 .How about hot melt adhesive film?

 A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point,it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands,then recommend you right products to you.



2.Do you accept OEM or ODM?

Yes ,we accept OEM and ODM,we are professional heat transfer material manufacturer ,having more than 10years experience.able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us konw.



3.How do you transport the products?

If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way.Of course if you have other better idea about transport, we will accept it.



4. May I have your samples?

If you need some sample for reference,please let us know your fully address/ship
mode with courier,and we will arrange sample for your reference.



5. How long is the lead time?

Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)



6. How do I pay for my order?

We accept L/C ,T/T ,Western Union , Paypal
