Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: SGS , ISO9001
Model Number: DS017YM
Payment & Shipping Terms
Minimum Order Quantity: 100m
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
Color: |
Transparent |
Melting Point(°C): |
65-90℃ |
Melt Index(g/10min): |
75±15g/10min (ASTM D1238-04) |
Hot Pressing Temperature(°C): |
93-116℃ |
Physical Form: |
Glassine Release Paper |
Conventional Thickness: |
0.26mm |
Conventional Width: |
6mm-1000mm |
Length: |
1000mm |
Density: |
0.96±0.02g/cm³ |
Washing Resistant Time: |
40°C/72H |
Color: |
Transparent |
Melting Point(°C): |
65-90℃ |
Melt Index(g/10min): |
75±15g/10min (ASTM D1238-04) |
Hot Pressing Temperature(°C): |
93-116℃ |
Physical Form: |
Glassine Release Paper |
Conventional Thickness: |
0.26mm |
Conventional Width: |
6mm-1000mm |
Length: |
1000mm |
Density: |
0.96±0.02g/cm³ |
Washing Resistant Time: |
40°C/72H |

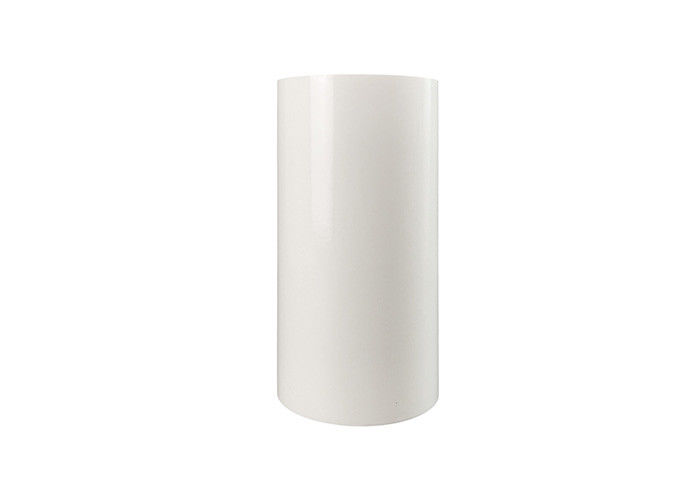

Hot Melt adhesive Film Pressure Sensitive Adhesive Tape for Star Diamand Protective Shell
Physical Characteristics:
| Color | Transparent | Release liner | Glassine release paper |
| Density | 0.96±0.02g/cm³ | Conventional Thickness | 0.26mm |
| Melting point | 65-90℃(Tunsing DSC 214) | Width | 6mm-1000mm |
| Melt Flow Index | 75±15g/10min (ASTM D1238-04) | Length | 1000mm |
| Operating Temperature | 93-116℃ (Tunsing) | Conventiona Length | 100 yard |
| Washing Resistant Time | 40℃ | Finished Products | 1000mm*100yard/roll |
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
NOTICE:
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
DS017YM is used for the hot pressing of positioning after embroidery trademark, fancy ironing, LOGO or cutting pieces.
Quick detail:
This product is a self-adhesive hot melt film.Double-layer structure: one layer is hot-melt adhesive (no viscosity at room temperature, it needs to be warmed and glued), and the other layer is pressure sensitive adhesive of propylene acid (self-adhesive energy at room temperature, release paper).Self-adhesive layer can be below 150 degrees temperature without dropping glue, without losing glue property, and can be repeatedly pasted, in line with European demand indicators.
Customer Feedback:
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, 30-40 days by sea
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
