Product Details
Place of Origin: China
Brand Name: Tunisng
Certification: SGS , ISO9001
Model Number: DS8507
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: negotiable
Packaging Details: 100 yard in a roll, 1 rolls in a carton, or it's up on the customer's request
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
Color: |
Transparent |
Melting Point(°C): |
95-125℃ (Tunsing DSC 214) |
Melt Index(g/10min): |
10±5g/10mins （ASTM D1238-04） |
Hot Pressing Temperature(°C): |
130℃-170℃ |
Physical Form: |
Glassine Release Paper |
Conventional Thickness: |
0.05mm,0.08mm,0.1mm,0.15mm |
Conventional Width: |
1380mm |
Length: |
100 Yards |
Density: |
1.18±0.02g/cm³ |
Washing Resistant Time: |
60°C/72H |
Hardness: |
73±3 (Shore A) |
Color: |
Transparent |
Melting Point(°C): |
95-125℃ (Tunsing DSC 214) |
Melt Index(g/10min): |
10±5g/10mins （ASTM D1238-04） |
Hot Pressing Temperature(°C): |
130℃-170℃ |
Physical Form: |
Glassine Release Paper |
Conventional Thickness: |
0.05mm,0.08mm,0.1mm,0.15mm |
Conventional Width: |
1380mm |
Length: |
100 Yards |
Density: |
1.18±0.02g/cm³ |
Washing Resistant Time: |
60°C/72H |
Hardness: |
73±3 (Shore A) |

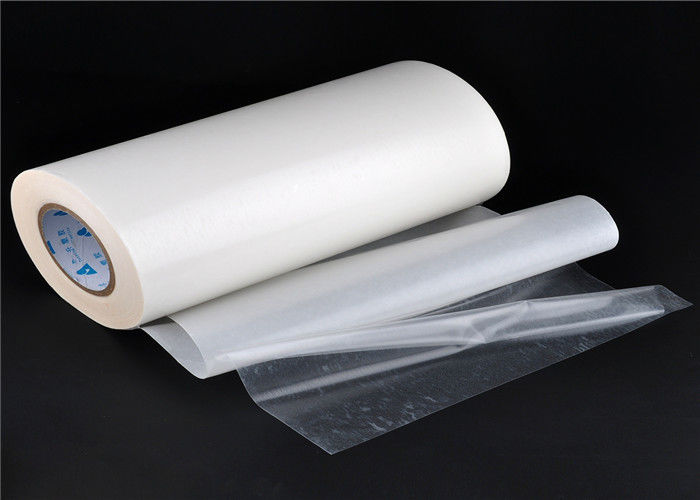

Polyurethane TPU Hot Melt Adhesive Film For Foam
Quick detail:
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
Physical Characteristics:
| Colour | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Opening Time | 20min | Width | 5mm-1480mm |
| Melt Flow Index | 10±5g/10mins (ASTM D1238-04) | Conventional Thickness | 0.05mm,0.08mm,0.10mm |
| Hardness | 73±3 (Shore A) | Conventional Width | 1380mm |
| Melting Range | 95-125℃ (Tunsing DSC 214) | Conventional Length | 100 yards |
| Activation Temperature | 116-157℃ (Tunsing) | Finished product | 1380mm*100yards/roll |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-170℃ | Mechanical Mold Temperature | 140℃-180℃ |
| Time | 5-15 seconds | Packing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
The conventional width of a roll fim is 138cm, but the width can make on the customer's request, from 10mm to 1500mm.
Applications:
DS8507 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports material
Customer Feedback:1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Packing and Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, and 30-40 days by sea.
Exihibition
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
FAQ:
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
