Product Details
Place of Origin: Shenzhen,CHINA
Brand Name: Tunsing
Certification: ISO,RoHS,REACH
Model Number: DS8613
Payment & Shipping Terms
Minimum Order Quantity: 1roll
Price: negotiate
Packaging Details: 100m/roll ,1roll/ctn
Delivery Time: 3-5 work days
Payment Terms: D/A, T/T,PayPal
Supply Ability: 400000 m/Month
Keyword: |
TPU Hot Melt Adhesive Film |
Appearance: |
Film |
Composition: |
White Fog Translucent |
Density: |
1.20±0.02g/cm³ |
Melting Range: |
10±5g/10mins （ASTM D1238-04） |
Hardness: |
97±2 （Shore A） |
Thickness: |
0.0125mm-0.15mm |
Width: |
5mm-1480mm |
Keyword: |
TPU Hot Melt Adhesive Film |
Appearance: |
Film |
Composition: |
White Fog Translucent |
Density: |
1.20±0.02g/cm³ |
Melting Range: |
10±5g/10mins （ASTM D1238-04） |
Hardness: |
97±2 （Shore A） |
Thickness: |
0.0125mm-0.15mm |
Width: |
5mm-1480mm |

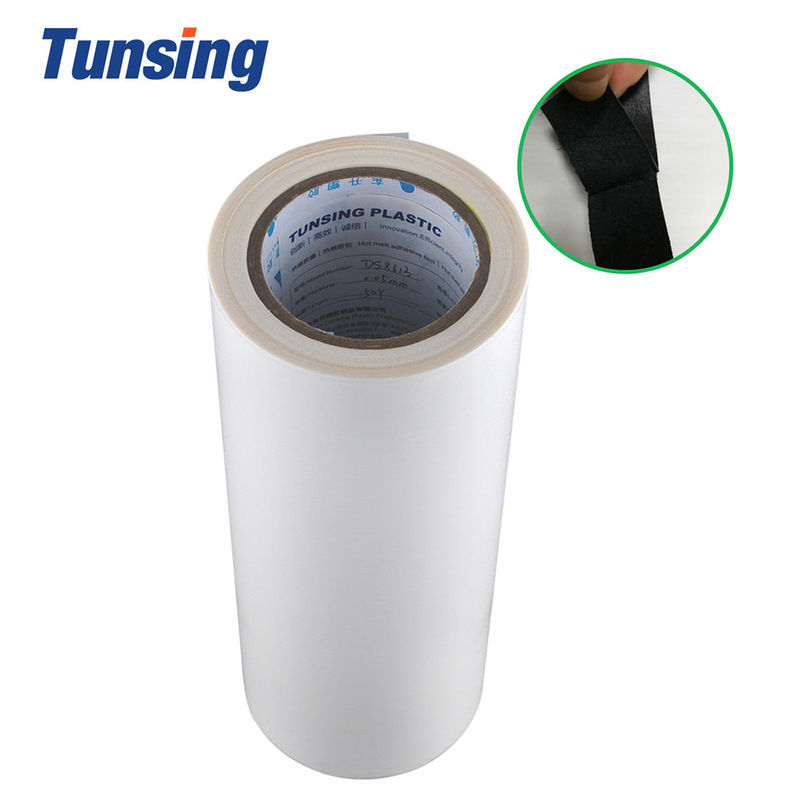

Film TPU Hot Melt Adhesive Repeatedly Heated Thermoplastic Polyurethane for Leather
TPU Hot Melt Adhesive Film Description
This product is a thermoplastic hot melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has low use temperature, easy processing and excellent cold resistance.
TPU Hot Melt Adhesive Film Applications
DS8613 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
TPU Hot Melt Adhesive Film Recommended Bonding Conditions
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 120℃-150℃ | Mechanical Mold Temperature | 130℃-180℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
1. Bonding temperature and pressure and time relate to the bonding strength of the film to the material. The bonding temperature must be close to the temperature set by the machine, the pressure must be uniform, and the mold and press rolls must be flat.
2. The bonding conditions used will vary between machines and materials. The conditions indicated here are only basic. The most ideal bonding conditions should be established by manufacturing for the specific application.
Note: The seller hereby declares that Tunsing will refuse to accept the assurance of the components of the manufacturing process.
