Product Details
Place of Origin: China, Shenzhen
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS8610
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.4-0.7per yard
Packaging Details: 1 roll in per carton, 100 yards in one roll
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 3000kg per day
Keywords: |
Hot Melt Adhesive FIlm |
Release Protection: |
Glassine Release Paper |
Melt Point: |
55-75℃ |
Activation Temperature: |
77-116℃ |
Proportion: |
1.20±0.02g/cm³ |
Conventional Length: |
100 Yards |
Finished Product: |
1380mm*100yards/roll |
Keywords: |
Hot Melt Adhesive FIlm |
Release Protection: |
Glassine Release Paper |
Melt Point: |
55-75℃ |
Activation Temperature: |
77-116℃ |
Proportion: |
1.20±0.02g/cm³ |
Conventional Length: |
100 Yards |
Finished Product: |
1380mm*100yards/roll |

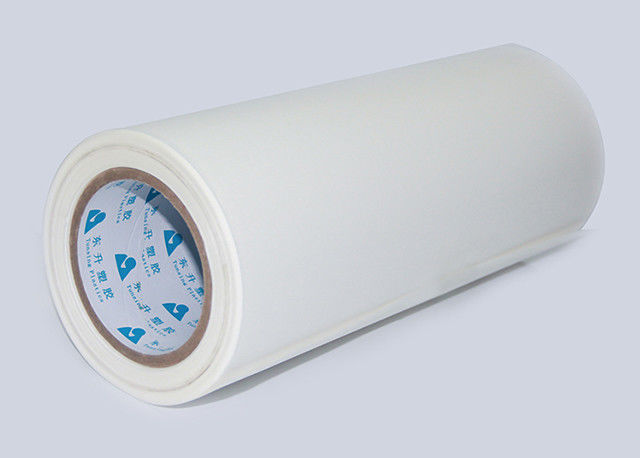

Low Temperature TPU Hot Melt Film for Bonding MDF Board
TPU Hot Melt Film Product: DS8610
TPU Hot Melt Film Description
This product is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. This hot melt adhesive has excellent adhesion to textiles, TPU, PVC, PC, ABS, and has low use temperature, easy processing and excellent cold resistance.
TPU Hot Melt Film Technical Parameters:
|
Colour |
Milky white translucent |
Release Protection |
Glassine Release Paper |
|
Proportion |
1.20±0.02g/cm³ |
Thickness |
0.0125mm-0.15mm |
|
Opening time |
5min |
Width |
5mm-1480mm |
|
Melt Flow Index |
37±10g/10mins (ASTM D1238-04) |
Conventional Thickness |
0.05mm,0.08mm,0.10mm |
|
Hardness |
97±3 (Shore A) |
Conventional Width |
1380mm |
|
Melting Range |
55-75℃ (Tunsing DSC 214) |
Conventional Length |
100 yards |
|
Activation Temperature |
77-116℃ (Tunsing) |
Finished Product |
1380mm*100yards/roll |
TPU Hot Melt Film Technical Parameters:
|
First Lamination |
Second Implanting |
||
|
Mechanical Mold Temperature |
90℃-110℃ |
Mechanical Mold Temperature |
90℃-130℃ |
|
Time |
5-15 seconds |
Time |
8-25 seconds |
|
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
TPU Hot Melt Film Application
Customer feedback
TPU Hot Melt Film Package
It can ship by FedEX. It will need 5-7 days at usual. Also can by sea and air.
3-5yards free sample for you to testing, you just pay to the shipping fee.
FQA
Q1).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don't hesitate to let us know,
