Product Details
Place of Origin: Guangdong,China
Brand Name: Tunsing
Certification: Oeko-tex,REACH
Model Number: DS8507
Payment & Shipping Terms
Minimum Order Quantity: 100yards/roll
Price: negotiable
Packaging Details: 100yard/roll, 1roll/CTN
Delivery Time: 2-4 work days
Payment Terms: T/T , L/C, PayPal
Supply Ability: 6800000 m / Month
Keyword: |
TPU Hot Melt Adhesive Film |
Material: |
TPU |
Width: |
5mm-1500mm,customized Size |
Thickness: |
0.0125mm-0.2mm |
Length: |
100 Yards |
Hardness: |
73±3 (Shore A) |
Shelf Life: |
12months |
Mechanical Mold Temperature: |
130℃-180℃ |
Keyword: |
TPU Hot Melt Adhesive Film |
Material: |
TPU |
Width: |
5mm-1500mm,customized Size |
Thickness: |
0.0125mm-0.2mm |
Length: |
100 Yards |
Hardness: |
73±3 (Shore A) |
Shelf Life: |
12months |
Mechanical Mold Temperature: |
130℃-180℃ |

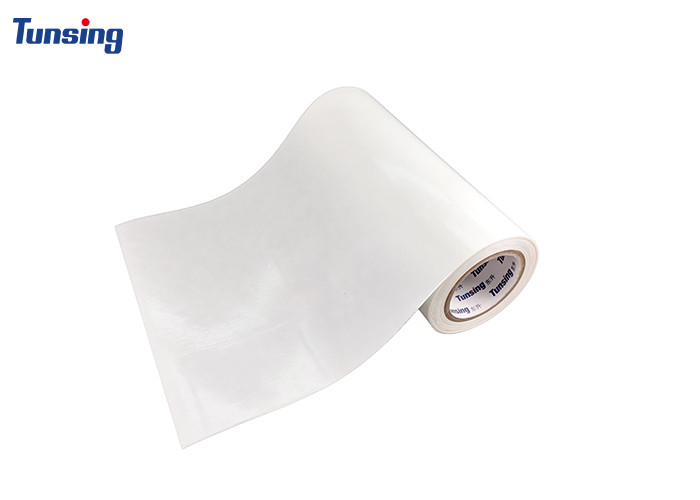

Soft Feel Polyurethane Adhesive TPU Hot Melt Film for Laminating Fabric
TPU Hot Melt Adhesive Film Product Description:
1. TPU hot melt adhesive is a kind of thermoplastic Polyurethane hot melt adhesive film.
2. Polyurethane film is supported by release paper and can be repeatedly heated and plasticized.
3. TPU hot melt adhesive has excellent adhesion to textiles, TPU, PVC, and has good feel and resilience, and excellent cold resistance.
TPU Hot Melt Adhesive Film Applications:
DS8507 is used in the bonding of clothing, embroidery, footwear, luggage, handbags, toys, hats, sports materials.
TPU Hot Melt Adhesive Film Composition:
Polyurethane
TPU Hot Melt Adhesive Film Physical Characteristics:
| Colour | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.18±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Opening Time | 20min | Width | 5mm-1480mm |
| Melt Flow Index | 10±5g/10mins (ASTM D1238-04) | Conventional Thickness | 0.05mm,0.08mm,0.10mm |
| Hardness | 73±3 (Shore A) | Conventional Width | 1380mm |
| Melting Range | 95-125℃ (Tunsing DSC 214) | Conventional Length | 100 yards |
| Activation Temperature | 116-157℃ (Tunsing) | Finished product | 1380mm*100yards/roll |
TPU Hot Melt Adhesive Film Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-170℃ | Mechanical Mold Temperature | 140℃-180℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
Feedback
FAQ :
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
