Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: RoHs, REACH,
Model Number: DS001TS
Payment & Shipping Terms
Minimum Order Quantity: 100 yards
Price: USD 0.2-0.4per yard
Packaging Details: 2 roll in per carton
Delivery Time: shipped in 3-5days after payment
Payment Terms: T/T
Supply Ability: 7000kg per day
Keywords: |
PES Hot Melt Glue Film Bonding |
Colour: |
Milky White Translucent |
Melt Point: |
90-120degree |
Conventional Width: |
500mm,1000mm,1280mm,1480mm |
Conventional Length: |
100 Yards |
Washing Resistant: |
40℃ |
Keywords: |
PES Hot Melt Glue Film Bonding |
Colour: |
Milky White Translucent |
Melt Point: |
90-120degree |
Conventional Width: |
500mm,1000mm,1280mm,1480mm |
Conventional Length: |
100 Yards |
Washing Resistant: |
40℃ |

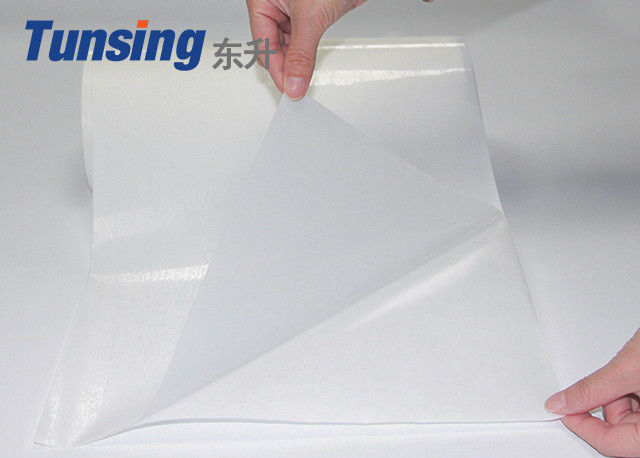

40℃ Washable Polyester PES Hot Melt Adhesive Film Bonding Shoe Label
PES Hot Melt Adhesive Film Description
1. DS001TS is a thermoplastic film hot melt adhesive, entrusted to the release of paper, can be repeatedly heated plasticized bonding.
2. The hot melt adhesive film has excellent adhesion to textile products, PVC, PC.
3. it is resistant to dry cleaning and 40℃ washing.
PES Hot Melt Adhesive Film Technical Parameters:
Colour |
Milky white translucent |
Release Protection |
Glassine Release Paper |
Proportion |
1.15±0.02g/cm³ |
Conventional Thickness |
0.05mm,0.08mm,0.10mm,0.12mm,0.15mm,0.18mm |
Melting Range |
90-120℃ (Tunsing DSC 214) |
Width |
10mm-1480mm |
Liquidity Index |
32±15g/10min(ASTM D1238-04) |
Conventional Width |
500mm,1000mm,1280mm,1480mm |
Activation Temperature |
116-150℃(Tunsing) |
Conventional Length |
100 yards |
Washing Resistant |
40℃ |
Finished Product |
500mm*100yards/roll |
PES Hot Melt Adhesive Film Technical Parameters:
First Lamination |
Second Implanting |
||
Mechanical Mold Temperature |
130℃-160℃ |
Mechanical Mold Temperature |
130℃-170℃ |
Hot Pressing Time |
5-15 seconds |
Hot Pressing Time |
8-25 seconds |
Pressure |
0.3-0.6mpa |
Pressure |
0.3-0.6mpa |
Why Choose Us
1. We are environmentally friendly adhesive enterprises to ensure the environmental performance of raw materials
2. Own factory, efficient technical equipment, a number of production lines
3. Professional R & D team, set production, research and development, sales as one of the new enterprises
4. Service thoughtful, short delivery cycle
The advantages of the hot melt adhesive film when compare to traditional glue bonding:
1. Eliminate the complicated process of glue application and do not need the related equipments;
2. Bonding fastly, heating and cooling, stick firmly;
3. The bonding fastness to textiles, leather, fabrics and glass fiber products is better than the glue with the same price;
4. Eco friendly, no harm to the environment and human body;
5. Do not need to worry about glue leakage during the bonding, and thematerials will be clean, tidy and no peculiar smell after bonding;
6. The bonded material will not fall off, wrinkle, or foam after washing and dry cleaning.
PES Hot Melt Adhesive Film Application
Customer feedback
Q1). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q2). How long is the lead time?
Sample lead time: 1-3 days Bulk lead time: 7-20days(depends on order quantity),
Q3). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypa
