Home > products > Hot Melt Adhesive Film > Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards

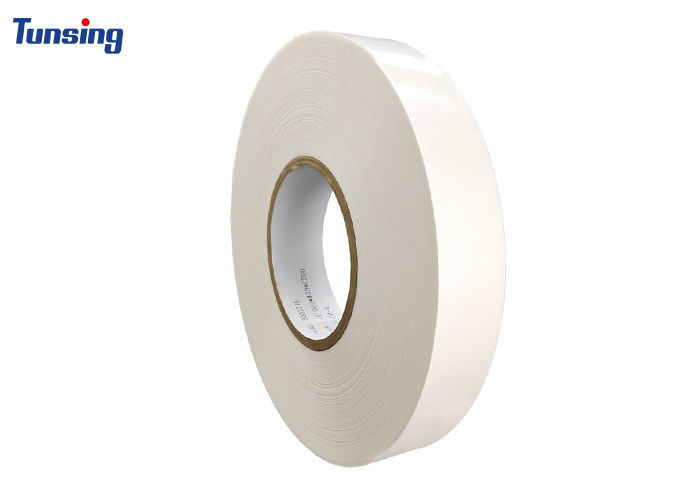

Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards

Product Details

Place of Origin: China

Brand Name: TUNSING

Certification: ISO 9001 SGS Oeke-TEX

Model Number: DS-4

Payment & Shipping Terms

Minimum Order Quantity: 100yards or 100 meters

Price: Negotation

Packaging Details: 1rolls in one box,each with black PP bag

Delivery Time: 3-5 work days after received the payment

Payment Terms: L/C, T/T, Western Union, Western Union

Supply Ability: 9900000 yards per day

Get Best Price
Highlight:

Width 29MM Adhesive Tape Roll

,

Adhesive Tape Roll For IC Cards

,

IC Cards Hot Melt Adhesive Film

Color:
Light Yellow
Melt Flow Index:
75±25g/10mins (ASTM D1238-04)
Melting Range:
65-95 ℃ (ISO11357)
Conventional Thickness:
0.055mm±0.008mm
Conventional Width:
29mm
Hardness:
D58±2 ( Shore )
Finished Product:
0.055mm*29mm*200m
Operating Temperature:
140-180℃
Color:
Light Yellow
Melt Flow Index:
75±25g/10mins (ASTM D1238-04)
Melting Range:
65-95 ℃ (ISO11357)
Conventional Thickness:
0.055mm±0.008mm
Conventional Width:
29mm
Hardness:
D58±2 ( Shore )
Finished Product:
0.055mm*29mm*200m
Operating Temperature:
140-180℃
Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards

Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film for IC cards



Product:DS-4
Despription:

The hot melt adhesive is used for embedding of contact smart cards. Excellent adhesion to PVC, FR-4 and other materials.This product belongs to hot-melt tape with low and medium temperature properties. Very strong cohesion and good flexibility to ensure that no structural fracture will occur in the thrust and bending tests after bonding, while maintaining a balanced bond strength with the chip and the card base, and has excellent punchability. Meet the requirements of ISO7816 standard for chip package fastness.

Colour
Light Yellow
Melting Range
70-95℃
Melt Flow Index
75±25g/10min
Hardness
58±2
Conventional Thickness
0.055mm
Finished Product
0.055 mm*29 mm*200 m

Recommended Bonding Conditions

First Lamination Second Implanting
Mechanical Mold Temperature 140℃-160℃ Mechanical Mold Temperature 160℃-180℃
Hot Pressing Time 0.6-1.2 seconds Hot Pressing Time 0.6-1.2 seconds
Pressure 0.25-0.4mpa Pressure 0.25-0.4mpa

Free sample:
We provide you free sample,and you need to pay the shipping cost.
Why should you choose us?
Our company was founded in 2007 and it has passed ISO9001:2015 quality management system certification, and all products in our company are up to RoHS,REACH, Oeko-tex, California Proposition 65, Halogen Test Report, PFOA, PFOS, PAHS, HBCDD and other environmental standards.
Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards 0

Application:

DS-4 is suitable for heat embedding of IC cards, SIM cards, financial social security cards, and contact bank cards.

Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards 1

Customer Feedback:

Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards 2



Shipping & Packing:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on) and by air, 30-40 days by sea

Width 29MM Adhesive Tape Roll Hot Melt Adhesive Film For IC Cards 3

Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.

FAQ
Q1) . What is hot melt adhesive web film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
