Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS615B
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 3000000 yards per month
Name: |
PES Hot Melt Adhesive Film |
Melting Range: |
80-100℃(ISO11357) |
Melt Flow Index: |
40±7g/10min(ASTM D1238-04) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
115-140℃(Tunsing) |
Proportion: |
1.05±0.02g/cm³ |
Operating Temperature: |
150-190℃ |
Name: |
PES Hot Melt Adhesive Film |
Melting Range: |
80-100℃(ISO11357) |
Melt Flow Index: |
40±7g/10min(ASTM D1238-04) |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
115-140℃(Tunsing) |
Proportion: |
1.05±0.02g/cm³ |
Operating Temperature: |
150-190℃ |

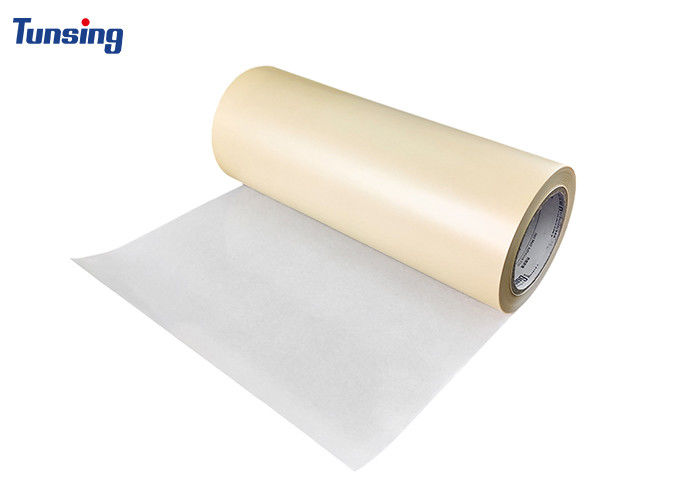

High Temperature PES Polyester Hot Melt Adhesive Film for Bonding Mental
Hot Melt Adhesive Film
PES Hot Melt Adhesive Film
The PES Hot Melt Adhesive Film is in the form of a thermoplastic film, which provides convenient handling and application. The film can be easily cut or shaped to suit different bonding requirements.The PES Hot Melt Adhesive Film is specifically designed for repeated heating and plasticizing bonding. The PES Hot Melt Adhesive Film can be heated multiple times without compromising its adhesive properties, allowing for convenient repositioning or adjustments during the bonding process.
The Mental Applications of PES Hot Melt Adhesive Film
PES hot melt adhesive film is widely used in metal applications due to its excellent adhesive properties and compatibility with various metal substrates. Here's a description of PES hot melt adhesive film applied to metal:
1.Strong Adhesion: PES hot melt adhesive film exhibits strong adhesion to metals, ensuring reliable and durable bonding. PES hot melt adhesive film forms a robust bond that withstands various stresses and environmental conditions.
2.Compatibility with Different Metals: PES hot melt adhesive film is compatible with a wide range of metals, including but not limited to copper, aluminum, iron, stainless steel, and other common metal alloys. PES hot melt adhesive film provides effective bonding solutions for metal-to-metal or metal-to-other substrate applications.
The Physical Characteristics of PES Hot Melt Adhesive Film
PES hot melt adhesive film possesses specific physical properties that contribute to its performance and application. Here's a description of the physical characteristics of PES hot melt adhesive film:
1.Melting Point: PES hot melt adhesive film has a specific melting point, which is the temperature at which it transitions from a solid to a liquid state. PES hot melt adhesive film is important to heat the film to the appropriate temperature range to achieve proper melting and bonding.
2.Tensile Strength: PES hot melt adhesive film possesses good tensile strength, which measures its resistance to stretching or pulling forces. The tensile strength ensures the integrity of the adhesive bond and its ability to withstand mechanical stresses.
Physical Characteristics
| Colour | Amber |
| Release Layer | Glassine Release Paper |
| Thickness Range | 0.025mm-0.30mm |
| Width Range | 5mm-1580mm |
| Proportion | 1.05±0.02g/cm³ |
| Melt Flow Index | 40±7g/10min(ASTM D1238-04) |
| Melting Range | 80-100℃(ISO11357) |
| TG Temperature | 14±5℃ (GB/T 19466.2-2004) |
| Activation Temperature | 115-140℃(Tunsing) |
Recommended Bonding Conditions
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 150℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Finished Product | 0.3-0.6mpa |
The PES Hot Melt Adhesive Film's Customer Feedback
Customer feedback on PES hot melt adhesive film can vary based on individual experiences and specific application requirements. Here's a general description of customer feedback regarding PES hot melt adhesive film:
1. PES hot melt adhesive film easy to handle and apply. PES hot melt adhesive film allows for precise cutting, shaping, and placement on different surfaces. Additionally, the quick melting and solidification properties of the adhesive film contribute to efficient and convenient application processes.
2.Customers often appreciate the strong bonding capabilities of PES hot melt adhesive film. They find that it creates a reliable and durable bond between various substrates, such as metals, plastics, textiles, wood, and paper. The adhesive strength of PES hot melt adhesive film is frequently praised for its ability to withstand mechanical stress and temperature fluctuations.
The PES Hot Melt Adhesive Film‘s
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
