Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: SGS , ISO9001
Model Number: DS8502
Payment & Shipping Terms
Minimum Order Quantity: 100Y
Price: negotiable
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 5-7days
Payment Terms: Western Union, L/C, T/T, PayPal
Supply Ability: 40000 Square meters per day
NAME: |
TPU Hot Melt Adhesive Film |
Melting Range: |
80-105℃ （ISO11357） |
Melt Flow Index: |
17±7g/10min（ASTM D1238-04） |
Thickness Range: |
0.025mm - 0.30mm |
Width Range: |
5mm - 1580mm |
Proportion: |
1.18±0.02g/cm³ |
Activation Temperature: |
116-145℃ （Tunsing） |
Operating Temperature: |
120-160℃ |
NAME: |
TPU Hot Melt Adhesive Film |
Melting Range: |
80-105℃ （ISO11357） |
Melt Flow Index: |
17±7g/10min（ASTM D1238-04） |
Thickness Range: |
0.025mm - 0.30mm |
Width Range: |
5mm - 1580mm |
Proportion: |
1.18±0.02g/cm³ |
Activation Temperature: |
116-145℃ （Tunsing） |
Operating Temperature: |
120-160℃ |

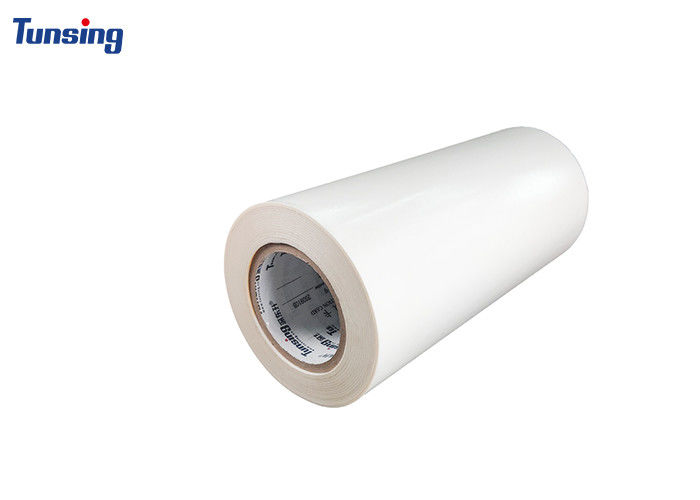

Soft Polyurethane Adhesive Film TPU Hot Melt Adhesive Film for PU Leather
TPU Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film is a versatile adhesive product commonly used in various industries. Its main characteristic is its ability to soften and bond when heated, and TPU Hot Melt Adhesive Film solidifies upon cooling. TPU Hot Melt Adhesive Film is typically supported by a release paper, which helps protect the adhesive and makes it easier to handle and apply.This particular TPU hot melt adhesive exhibits excellent adhesion properties to textiles, TPU (thermoplastic polyurethane), and PVC (polyvinyl chloride). TPU Hot Melt Adhesive Film forms strong bonds with these materials, providing reliable and durable adhesion. Additionally.TPU Hot Melt Adhesive Film offers good feel and resilience, meaning it can maintain its adhesive properties even under stress or repeated use.
The Specification of TPU Hot Melt Adhesive Film
Physical Characteristics:
| Colour | Transparent |
| Release Protection | Glassine Release Paper |
| Thickness Range | 0.025mm - 0.30mm |
| Width Range | 5mm - 1580mm |
| Proportion | 1.18±0.02g/cm³ |
| Melt Flow Index | 17±7g/10min(ASTM D1238-04) |
| Hardness | 72±3 (Shore A) |
| Melting Range | 80-105℃ (ISO11357) |
| TG Temperature | -25±10℃ (GB/T 19466.2-2004) |
| Activation Temperature | 116-145℃ (Tunsing) |
Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 120℃-150℃ | Mechanical Mold Temperature | 130℃-160℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
The Application of TPU Hot Melt Adhesive Film
TPU Hot Melt Adhesive Film's
Packing & Shipping :
Packing: A3 1500 PCS/Box, A4 2000PCS/Box
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
