Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO 9001 SGS Oeke-TEX
Model Number: DS8507
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: Negotation
Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option
Delivery Time: 3-5 work days after received the payment
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 40000 Square meters per day
NAME: |
Hot Melt Adhesive Film |
Melt Flow Index: |
10±5g/10min（ASTM D1238-04） |
Melting Range: |
105-125℃ (ISO11357） |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
116-157℃（Tunsing） |
Hardness: |
72±2（Shore A） |
Operating Temperature: |
130-180℃ |
NAME: |
Hot Melt Adhesive Film |
Melt Flow Index: |
10±5g/10min（ASTM D1238-04） |
Melting Range: |
105-125℃ (ISO11357） |
Thickness Range: |
0.025mm-0.30mm |
Width Range: |
5mm-1580mm |
Activation Temperature: |
116-157℃（Tunsing） |
Hardness: |
72±2（Shore A） |
Operating Temperature: |
130-180℃ |
38cm Width Polyurethane Double Sided Hot Melt Adhesive Film TPU Hot Melt Adhesive Film for Waterproof Fabric

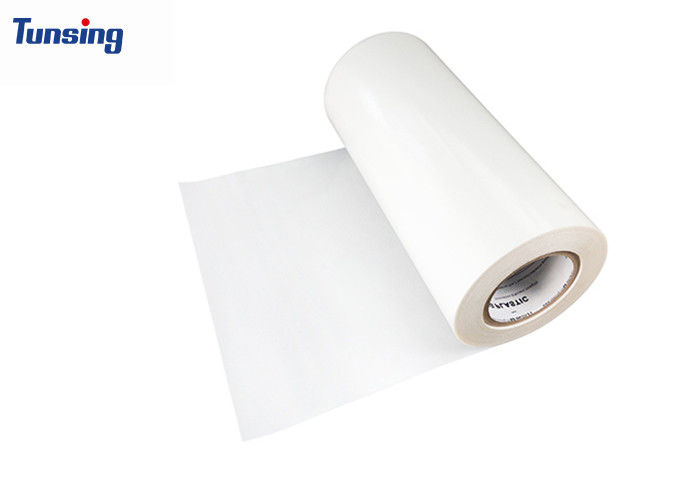

Hot Melt Adhesive Film
This hot melt adhesive film is a thermoplastic film hot melt adhesive with the release paper, can be repeatedly heated and plasticized for bonding.This kind of hot melt adhesive has excellent excellent for textiles, TPU and PVC.
The Application of Hot Melt Adhesive Film
TPU hot melt adhesive film is commonly used in the application of waterproof fabrics. TPU (thermoplastic polyurethane) hot melt adhesive film is a versatile adhesive material that can be melted and bonded to various substrates, including fabrics.
The Physical Characteristics of TPU Hot Melt Adhesive Film
Physical Characteristics
| Colour | Transparent |
| Release Layer | Glassine Release Paper |
| Thickness Range | 0.025mm-0.30mm |
| Width Range | 5mm-1580mm |
| Proportion | 1.18±0.02g/cm³ |
| Melt Flow Index | 10±5g/10min(ASTM D1238-04) |
| Hardness | 72±2(Shore A) |
| Melting Range | 105-125℃ (ISO11357) |
| TG Temperature | -27±10℃(GB/T 19466.2-2004) |
| Activation Temperature | 116-157℃(Tunsing) |
Recommended Bonding Conditions
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 130℃-170℃ | Mechanical Mold Temperature | 140℃-180℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
The Advantages of TPU Hot Melt Adhesive FIlm
1.Strong Adhesion: TPU hot melt adhesive film forms a strong bond with a wide range of substrates, including fabrics, plastics, and metals.
2.Flexibility: TPU is a flexible material, allowing the adhesive film to maintain its bond even when subjected to bending, stretching, or movement.
3.Heat Activated: TPU hot melt adhesive film is heat activated, meaning it becomes tacky and ready for bonding when heated.
4.Quick Bonding: TPU hot melt adhesive film has a fast setting time, enabling rapid bonding.
5.Good Chemical Resistance: TPU hot melt adhesive film exhibits good resistance to chemicals, oils, and solvents.
TPU Hot Melt Adhesive Film’s Customer Feedback
TPU Hot Melt Adhesive Film‘s
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
