Highlight:
Polyimide Plastics Tape Film
, Polyurethane Plastics Tape Film
, Thermosetting Plastics Tape Film
TPU Polyurethane Thermoplastic Thermosetting Adhesive Polyimide Plastics Tape Film
TPU Polyurethane Thermoplastic Thermosetting Adhesive Polyimide Plastics Tape Film
Hot Melt Thermoset Adhesive Film Description:
Bonding Mechanism: When heated above the activation temperature, the adhesive film softens and becomes tacky. It is applied between two substrates, and upon cooling, the adhesive undergoes a chemical crosslinking reaction, resulting in a strong and permanent bond.
Adhesion Strength: Hot melt thermoset adhesive films offer excellent adhesion strength. The crosslinking reaction during cooling creates a strong and durable bond between the substrates, providing resistance to heat, chemicals, and other environmental factors.
Bonding Versatility: Hot melt thermoset adhesive films can bond a wide range of materials, including metals, plastics, composites, and various other substrates. They are commonly used in industries such as automotive, electronics, aerospace, and construction.
Hot Melt Thermoset Adhesive Film Characteristics:
| Colour |
TransparentMilky White |
Release Protection |
Release Paper |
| Proportion |
1.18±0.02g/cm³ |
Thickness |
0.05mm, 0.75mm, 0.10mm |
|
Melting Range (DSC)
|
45-65℃
|
Conventional Width
|
1380mm
|
TPU Hot Melt Adhesive Film Recommended Bonding Conditions:
| First Lamination |
Second Implanting |
| Mechanical Mold Temperature |
60℃-70℃ |
Mechanical Mold Temperature |
90℃-150℃ |
| Time |
5-10 seconds |
Time |
30-60 seconds |
| Pressure |
0.3-0.6mpa |
Finished Product |
1380mm*100yards/roll |
Hot Melt Thermoset Adhesive Film application
DS602G is used in is applied to bonding 3C, luggage, and sporting goods component materials.
Hot Melt Adhesive Film buyer feedback
Hot Melt Adhesive Film Package

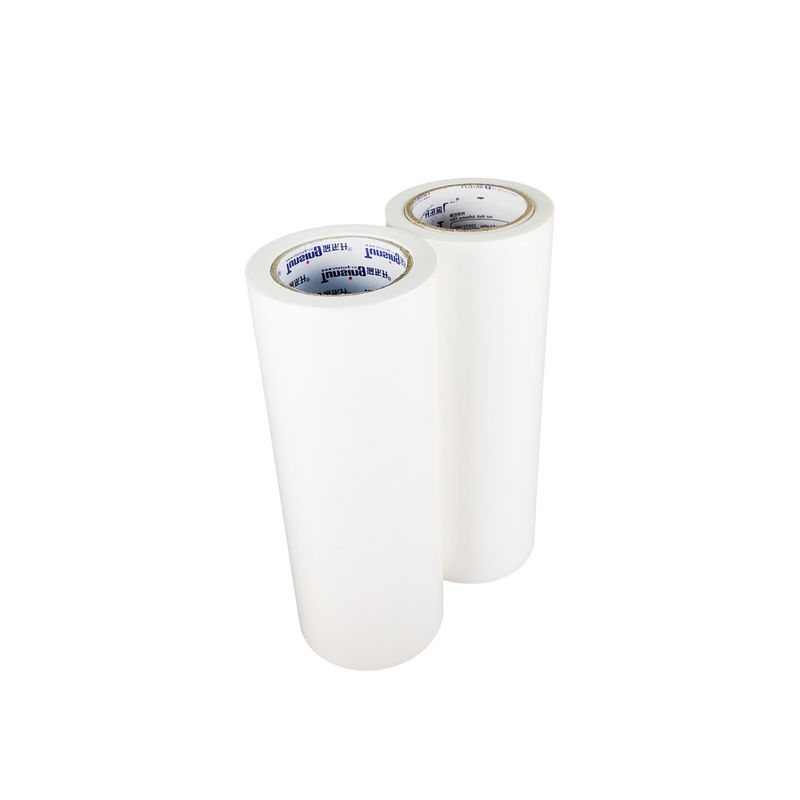

Our conventional width is 138cm, 100yards per roll.
1 roll in per carton.
About the free sample, we can provide the 3-5yards free sample for you to do the test.
