      Product Details
Place of Origin: China
Brand Name: Tunsing
Certification: Rohs, REACH
Model Number: DS8614
Payment & Shipping Terms
Minimum Order Quantity: 2 rolls
Price: 3.66-9.99$/Yard
Packaging Details: 1-2 rolls in one carton, each with PP bag
Delivery Time: 3-5 days
Payment Terms: T/T, Paypal
Supply Ability: 3000000 yards per month
| Release Protection: | Glassine Release Paper | Thickness Range: | 0.025mm - 0.30mm | Width Range: | 5mm - 1580mm | Melting Range: | 115-135℃ | Melt Flow Index: | 8±3g/10min | Hardness: | 52±2 (Shore A) | Temperature: | 145℃-165℃ | Pressure: | 0.3-0.5 Mpa | Time: | 5-15 S |
| Release Protection: | Glassine Release Paper |
| Thickness Range: | 0.025mm - 0.30mm |
| Width Range: | 5mm - 1580mm |
| Melting Range: | 115-135℃ |
| Melt Flow Index: | 8±3g/10min |
| Hardness: | 52±2 (Shore A) |
| Temperature: | 145℃-165℃ |
| Pressure: | 0.3-0.5 Mpa |
| Time: | 5-15 S |

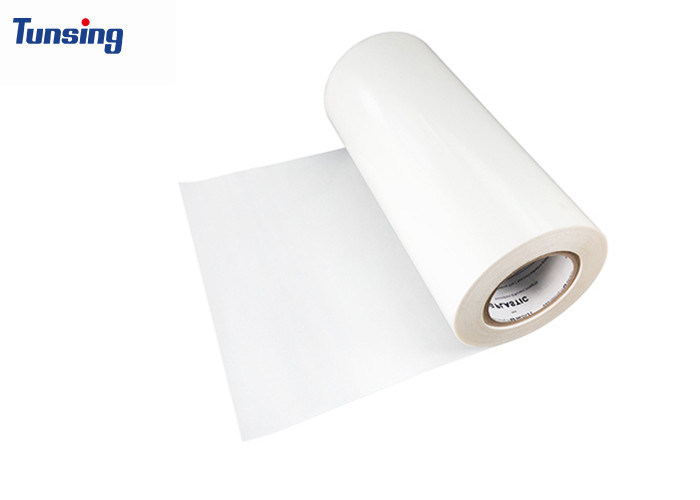

DS8614 is a thermoplastic hot-melt adhesive film, which is supported by release paper and can be repeatedly heated and plasticized. It exhibits excellent adhesion to a variety of materials, including textiles, TPU (thermoplastic polyurethane), and PVC (polyvinyl chloride). It offers a superior tactile experience with a good feel and resilience, making it ideal for applications where comfort and flexibility are crucial. Additionally, it boasts excellent cold resistance, ensuring reliable performance even in low-temperature environments. This makes it a versatile and durable choice for a wide range of industrial and consumer applications.
| Colour | Foggy translucent |
| Release Protection | Glassine Release Paper |
| Thickness Range | 0.025mm - 0.30mm |
| Width Range | 5mm - 1580mm |
| Proportion | 1.18±0.02g/cm³ |
| Melt Flow Index | 12±5g/10min(ASTM D1238-04) |
| Hardness | 85±3 (Shore A) |
| Melting Range | 35-60℃ (ISO11357) |
| TG Temperature | -35±8℃ (GB/T 19466.2-2004) |
| Activation Temperature | 110-145℃ (Tunsing) |

| First Lamination | Second Implanting | ||
|---|---|---|---|
| Mechanical Mold Temperature | 130℃-150℃ | Mechanical Mold Temperature | 130℃-170℃ |
| Time | 5-15 seconds | Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
