Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: Rohs,REACH
Model Number: DS3412
Payment & Shipping Terms
Minimum Order Quantity: 100yards or 100 meters
Price: negotiable
Packaging Details: 1-4 rolls in one box，each with black PP bag
Delivery Time: 3 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000000 yards per month
|
Material:
|
Polyurethane
|
Density:
|
1.18 G/cm3
|
Melt Point (DSC):
|
100-125°C
|
MI G/10mins:
|
35±10
|
Operating Temperature:
|
155°C -185°C
|
Hardness:
|
53A
|
Normal Thickness:
|
0.05mm
|
|
Material:
|
Polyurethane
|
|
Density:
|
1.18 G/cm3
|
|
Melt Point (DSC):
|
100-125°C
|
|
MI G/10mins:
|
35±10
|
|
Operating Temperature:
|
155°C -185°C
|
|
Hardness:
|
53A
|
|
Normal Thickness:
|
0.05mm
|

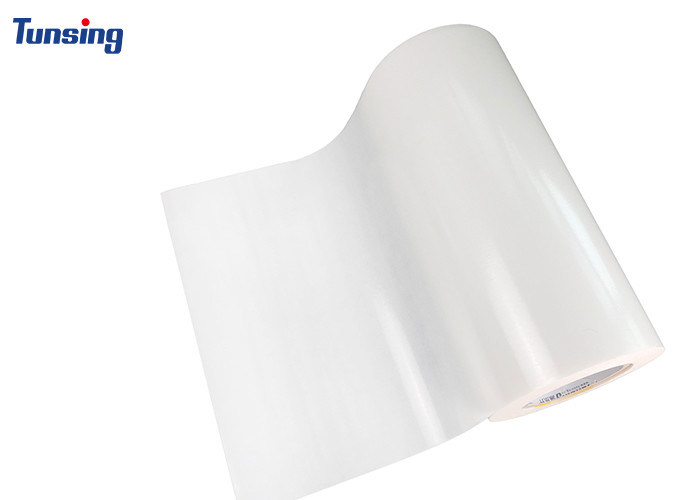

This thermoplastic hot-melt adhesive film is supported by release paper and can be repeatedly heated and plasticized. It offers excellent adhesion to textiles, TPU, and PVC, with superior feel, resilience, and exceptional cold resistance.
| Property | Specification | Property | Specification |
|---|---|---|---|
| Colour | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 1.14±0.02g/cm³ | Thickness | 0.0125mm-0.15mm |
| Opening Time | 12min | Width | 5mm-1480mm |
| Melt Flow Index | 6±3g/10mins (ASTM D1238-04) | Conventional Thickness | 0.05mm, 0.08mm, 0.10mm |
| Hardness | 52±2 (Shore A) | Conventional Width | 1380mm |
| Rheological Temperature | 102-125℃ (Tunsing) | Finished Product | 1380mm*100yards/roll |
| First Lamination | Second Implanting |
|---|---|
|
Mechanical Mold Temperature: 145℃-165℃ Time: 5-15 seconds Pressure: 0.3-0.6mpa |
Mechanical Mold Temperature: 155℃-185℃ Time: 8-25 seconds Finished Product: 1380mm*100yards/roll |
Conventional width: 138cm, 100 yards per roll. One roll per carton. We provide 3-5 yards free samples for testing purposes.
