Product Details
Place of Origin: China
Brand Name: TUNSING
Certification: ISO9001,RoHs
Model Number: DS0100R
Payment & Shipping Terms
Minimum Order Quantity: 100 yard
Price: USD 0.23-0.3 dollar per square meter
Packaging Details: 100 yards per roll
Delivery Time: 3-5days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 150000 meters per month

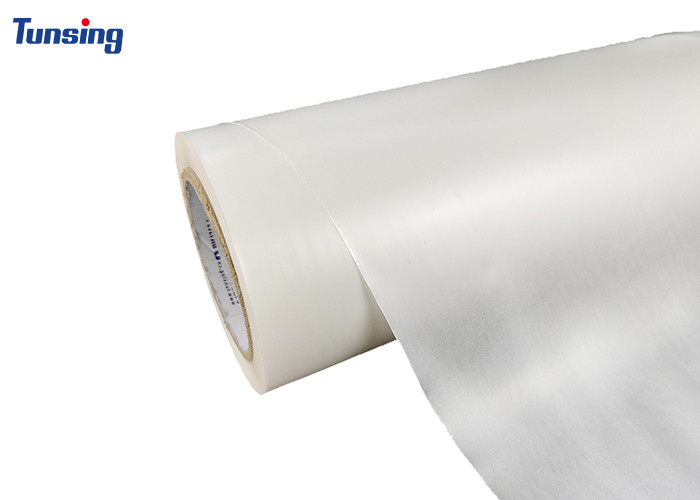

Self-Adhesive EAA Hot Melt Glue Film for Embroidery Patch
EAA Hot Melt Glue Film Product: DS019100R
EAA Hot Melt Glue Film Description:
This product is a thermoplastic hot-melt adhesive film, which is entrusted to release paper and can be repeatedly heated and plasticized for bonding. This hot melt adhesive has excellent adhesion to textiles and aluminum.
EAA Hot Melt Glue Film Composition: Ethylene acrylic copolymer
EAA Hot Melt Glue Film Physical Characteristics:
| Color | Transparent | Release Protection | Glassine Release Paper |
| Proportion | 0.98±0.02g/cm³ | Conventional Thickness | 0.05mm,0.08mm,0.1mm,0.12mm,0.15mm,0.18mm |
| Melting Range | 80-110℃ (Tunsing DSC 214) | Width Range | 5mm-1480mm |
| Liquidity Index | 60-95g/10min (ASTM D1238-04) | Conventional Width | 500mm,1000mm,1280,1480mm |
| Activation Temperature | 123-160℃ (Tunsing) | Conventional Length | 100 yards |
| Washing Resistance | 40℃ | Finished Product | 500mm*100yards/roll |
EAA Hot Melt Glue Film Recommended Bonding Conditions:
| First Lamination | Second Implanting | ||
| Mechanical Mold Temperature | 140℃-180℃ | Mechanical Mold Temperature | 150℃-190℃ |
| Hot Pressing Time | 5-15 seconds | Hot Pressing Time | 8-25 seconds |
| Pressure | 0.3-0.6mpa | Pressure | 0.3-0.6mpa |
EAA Hot Melt Glue Film Applications:
DS019100R is used in clothing, embroidery, footwear, luggage, handbags, toys, hats, sports goods, etc.
EAA Hot Melt Glue Film Packing & Delivery
Our conventional width is 50/100cm, length is 100yards per roll. Size can be customized. Two rolls per carton.
