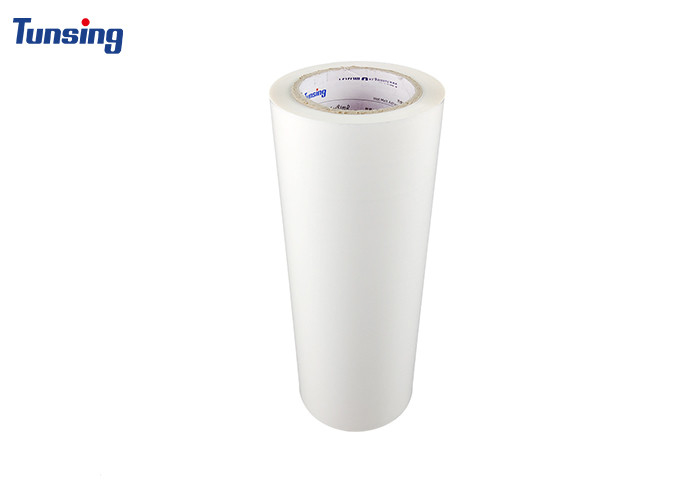

Clear Plain Hot Laminating Film Roll , Breathable Hot Melt Adhesive Film

Product Details

Place of Origin: China

Brand Name: Tunisng

Certification: RoHs, REACH

Model Number: DS019300M

Payment & Shipping Terms

Minimum Order Quantity: 100Y

Price: negotiable

Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option

Delivery Time: 5-7days

Payment Terms: Western Union, L/C, T/T, PayPal

Supply Ability: 40000 Square meters per day

Get Best Price
Highlight:

hot melt glue film

,

hot melt glue sheets

,

Clear Plain Hot Melt Adhesive Film

Color:
Transparent
Melting Point(°C):
90℃
Melt Index(g/10min):
300±30g/10min; Condition:ASTMD1238-04
Hot Pressing Temperature(°C):
120-150℃
Conventional Thickness:
0.10mm,0.12mm And 0.15mm
Conventional Width:
500mm,1000mm
Length:
100 Yards
Density:
0.96±0.02g/cm³
Washing Resistant Time:
60°C/72H
Color:
Transparent
Melting Point(°C):
90℃
Melt Index(g/10min):
300±30g/10min; Condition:ASTMD1238-04
Hot Pressing Temperature(°C):
120-150℃
Conventional Thickness:
0.10mm,0.12mm And 0.15mm
Conventional Width:
500mm,1000mm
Length:
100 Yards
Density:
0.96±0.02g/cm³
Washing Resistant Time:
60°C/72H
Clear Plain Hot Laminating Film Roll , Breathable Hot Melt Adhesive Film

Clear Plain Hot Laminating Film Roll , Breathable Hot Melt Adhesive Film



Description:

High Clarity, Wearable on surface, durabiility, good bonding,it's suitable for wide range of adherend . It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.



Applications:

For adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts and so on.



Composition:

Ethylene acrylic acid copolymer



Physical Characteristics:

Model

Washing Resistance

Press Time

Melting Point

MI Index

Operating Temperature

Conventional wide

Conventional Thickness

DS019300M

60°C/72H

First: 5-8S Second:10-15S

90°C

300

120°C -150°C

480mm,960mm

0.1mm,0.12mm,0.15mm



1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.

2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.



Clear Plain Hot Laminating Film Roll , Breathable Hot Melt Adhesive Film 0



NOTICE: Seller hereby excludes any express warranties and the implied warranties of merchantability and fitness for a particular purpose. The following is made in lieu of any such warranties. Tunsing believes the information supplied are reliable, but does not guarantee that any results shown or claimed will be obtained. Before using the user shall determine the suitability and fitness of the product for its intended use. The user assumes all risks and liability whatever in connection with its own tests and use. Neither seller nor manufacturer shall be liable for any injury, loss or damage, direct or consequential, arising out of the use, misuse or inability to use the product.



Why Choose Us

1, more than 10 years experience in production.

2, well-known products: Sichuan Famous Brand.

3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise

4, Excellent quality and Competitive price, OEM is available.

5, Stable supply: an extensive range of stock.

6, The whole process from material to end products is under supervision.



FAQ

Q1) . What is hot melt adhesive film?

A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,

Q2).Do you accept OEM or ODM?

Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,

Q3).How do you ship the products?

If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,

Q4). Do you provide free sample? And how many days it will take?

Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,

Q5). How long is the lead time?

Sample lead time: 1-3 days

Bulk lead time: 7-20days(depends on order quantity),

Q6). How do I pay for my order?

We usually accept L/C ,T/T ,Western Union , Paypal.
