0.12mm PA Hot Melt Glue Film , Thermoplastic Nylon Hot Melt Adhesive Sheets For Fabric

Product Details

Place of Origin: China

Brand Name: Tunsing

Certification: SGS , ISO9001

Model Number: DS002-2

Payment & Shipping Terms

Minimum Order Quantity: 100Y

Price: negotiable

Packaging Details: 1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option

Delivery Time: 5-7days

Payment Terms: Western Union, L/C, T/T, PayPal

Supply Ability: 40000 Square meters per day

Get Best Price
Highlight:

hot melt glue film

,

polyester adhesive film

Color:
Sky Blue Transparent
Melting Point(°C):
125℃-135℃
Melt Index(g/10min):
32±8g/10min; Condition:ASTM D1238-04
Hot Pressing Temperature(°C):
140°C -170°C
Physical Form:
Glassine Release Paper
Conventional Thickness:
0.10mm,0.12mm
Conventional Width:
50mm,100mm
Length:
100 Yards
Density:
1.15±0.02g/cm³
Washing Resistant Time:
90°C /168H
Color:
Sky Blue Transparent
Melting Point(°C):
125℃-135℃
Melt Index(g/10min):
32±8g/10min; Condition:ASTM D1238-04
Hot Pressing Temperature(°C):
140°C -170°C
Physical Form:
Glassine Release Paper
Conventional Thickness:
0.10mm,0.12mm
Conventional Width:
50mm,100mm
Length:
100 Yards
Density:
1.15±0.02g/cm³
Washing Resistant Time:
90°C /168H
0.12mm PA Hot Melt Glue Film , Thermoplastic Nylon Hot Melt Adhesive Sheets For Fabric

Adhesive Shenzhen PA Film Polyamide Sky Blue Transparent Thermoplastic Nylon Hot Melt Adhesive Film For Fabric

Physical Characteristics:


ColorSky blue transparentRelease linerGlassine release paper
Density1.15±0.02g/cm3Thickness0.05, 0.08,0.1, 0.12,0.15,0.18mm
Melting point125℃-135℃With range5mm-1500mm
Melt Flow Index

32±8g/10min;
Condition:ASTM D1238-04

Width480,1000,1380,1480mm
Rheology Temperature140°C -170°CLength100 yards

Washing/time


90°C /168HFinished products specification48cm*100yards/roll

0.12mm PA Hot Melt Glue Film , Thermoplastic Nylon Hot Melt Adhesive Sheets For Fabric 0

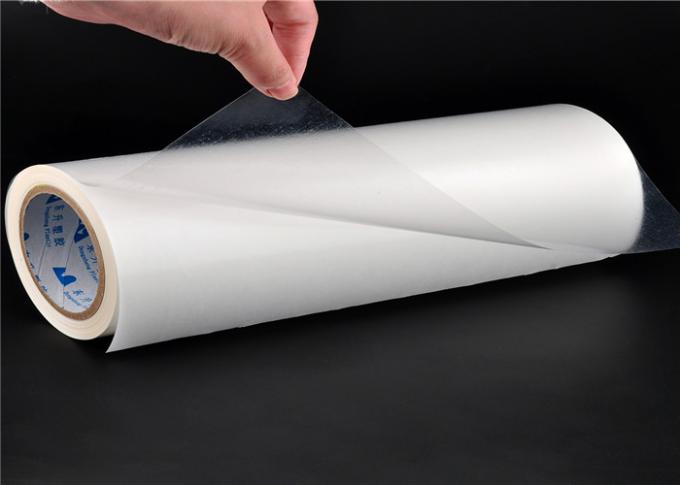

The whole roll of Polyamide hot melt adhesive film
The conventional length of a roll fim is 100Y, but the length can make on the customer's request

Quick detail:
PA hot melt adhesive film is a thermoplastic adhesive, suitable for wide range of materials. It performs an excellent adhesion for Fabrics, textiles, nylon etc. This adhesive exhibit excellent wash and dry cleaning and chemical additives.

Applications:

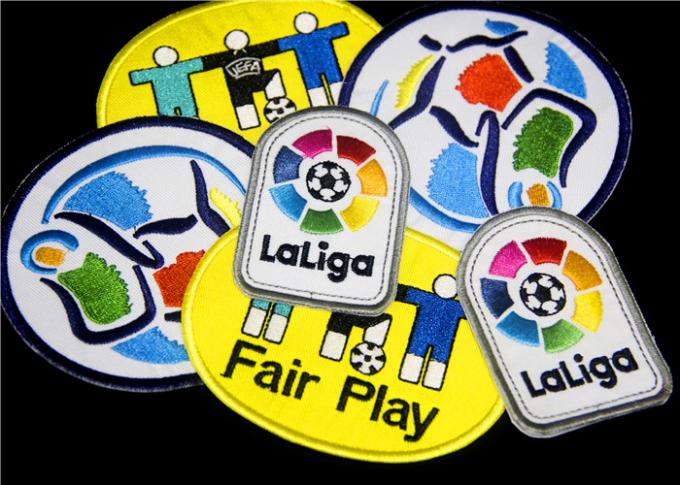

DS002-2 development direction and application is for garments accessories, footwear, handbags, luggage, embroidery, crafts of adhesive.
0.12mm PA Hot Melt Glue Film , Thermoplastic Nylon Hot Melt Adhesive Sheets For Fabric 1

NOTICE:

Flat PressSecond Flat Press
Machine Setting: 130℃-150℃Machine Setting: 140℃-170℃
Dwell Time: 5-15 secondsDwell Time: 8-25seconds
Pressure: 0.3-0.6mpaPressure: 0.3-0.6mpa

1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.

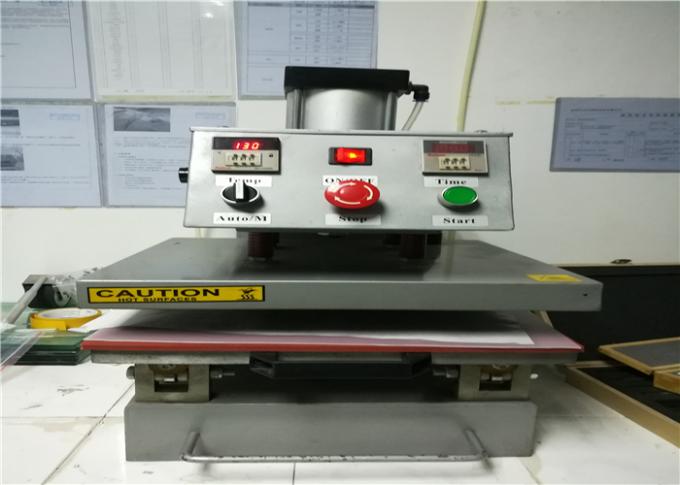

The Application Machines
0.12mm PA Hot Melt Glue Film , Thermoplastic Nylon Hot Melt Adhesive Sheets For Fabric 2

Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.

FAQ
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
