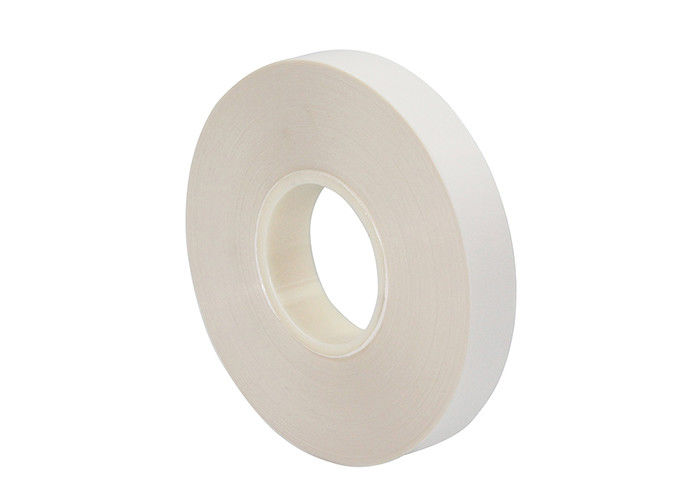

DS-4 Tunsing Hot melt adhesive tape for Sim Card

DS-4 Tunsing Hot melt adhesive tape for Sim Card
DS-4 Tunsing Hot melt adhesive tape for Sim Card

Large Image :  DS-4 Tunsing Hot melt adhesive tape for Sim Card

Product Details:
Place of Origin: Guangdong,China
Brand Name: Tunsing
Certification: Rohs,REACH
Model Number: DS-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: USD 3-5 per roll
Packaging Details: 20rolls per carton
Delivery Time: Shipped in 3-5 days
Payment Terms: T/T,paypal
Detailed Product Description
Appearance: Colour Density: 1.08±0.02g/cm³
Melt Range: 70-95℃ (Tunsing DSC 214) MI: 75±25g/10min(ASTM D1238-04)
Hardness: D 58±2 (Shore ) Finished Product: 0.055mm*29mm*200m
Release Protection: Glassine Release Paper
High Light:

hot melt glue film

,

polyester adhesive film

DS-4 Tunsing Hot melt adhesive tape for Sim Card



Hot melt adhesive tape Production description:

The hot melt adhesive is used for embedding of contact smart cards. Excellent adhesion to PVC, FR-4 and other materials.

This product belongs to hot-melt tape with low and medium temperature properties. Very strong cohesion and good flexibility to ensure that no structural fracture will occur in the thrust and bending tests after bonding, while maintaining a balanced bond strength with the chip and the card base, and has excellent punchability. Meet the requirements of ISO7816 standard for chip package fastness.



Hot melt adhesive tape specication:

Thickness * width * length: 55μm*29mm*200m



Hot melt adhesive tape Data:

Colour Light Yellow Release Protection Glassine Release Paper
Proportion 1.08±0.02g/cm³ Conventional Thickness 0.055mm±0.008mm
Melting Range 70-95℃ (Tunsing DSC 214) Conventional Width 29mm
Melt Flow Index 75±25g/10min(ASTM D1238-04) Conventional Length 200m
Hardness D 58±2 (Shore ) Finished Product 0.055mm*29mm*200m



Hot melt adhesive tape Applications:
DS-4 is suitable for heat embedding of IC cards, SIM cards, financial social security cards, and contact bank cards.

DS-4 Tunsing Hot melt adhesive tape for Sim Card 0









Hot melt adhesive tape Packaging Details: Vacuum packing, 200m/roll, 20rolls/CTN.



Hot melt adhesive tape Delivery Detail: Shipped in 3-5 days after payment.



Hot melt adhesive tape Test equipment:

Our DS-4's thrust force is 120N, and bend test can do the 6000 times.

DS-4 Tunsing Hot melt adhesive tape for Sim Card 1

DS-4 Tunsing Hot melt adhesive tape for Sim Card 2DS-4 Tunsing Hot melt adhesive tape for Sim Card 3

Hot melt adhesive tape Exhibition picture

Smart Cards Expo 2018

DS-4 Tunsing Hot melt adhesive tape for Sim Card 4
