Product Details
Place of Origin: China
Brand Name: None
Certification: ISO, ROHS, REACH, SGS
Model Number: DS019100R
Payment & Shipping Terms
Minimum Order Quantity: 100 yards / roll
Price: $0.3-$0.8/yard
Packaging Details: 1-2 rolls in one box
Delivery Time: 3-5 work days after payment
Payment Terms: L/C, T/T, PayPal, Alibaba Trade Assurance
Supply Ability: 10000 yards per week
Keywords: |
PO Hot Melt Adhesive Film |
Color: |
Transparent |
Melt Point (DSC): |
90°C |
Melt Flow Index: |
100±10g/10min ; Condition:ASTMD1238-04 |
Operating Temperature: |
130°C -160°C |
Washing Resistant Time: |
40°C/72H |
Conventional Thickness: |
0.05mm ,0.08mm, 0.1mm, 0.12mm,0.15mm,0.18mm |
Conventional Width: |
480mm,960mm |
Length: |
100 Yards |
Release Liner: |
Glassine Release Paper |
Keywords: |
PO Hot Melt Adhesive Film |
Color: |
Transparent |
Melt Point (DSC): |
90°C |
Melt Flow Index: |
100±10g/10min ; Condition:ASTMD1238-04 |
Operating Temperature: |
130°C -160°C |
Washing Resistant Time: |
40°C/72H |
Conventional Thickness: |
0.05mm ,0.08mm, 0.1mm, 0.12mm,0.15mm,0.18mm |
Conventional Width: |
480mm,960mm |
Length: |
100 Yards |
Release Liner: |
Glassine Release Paper |

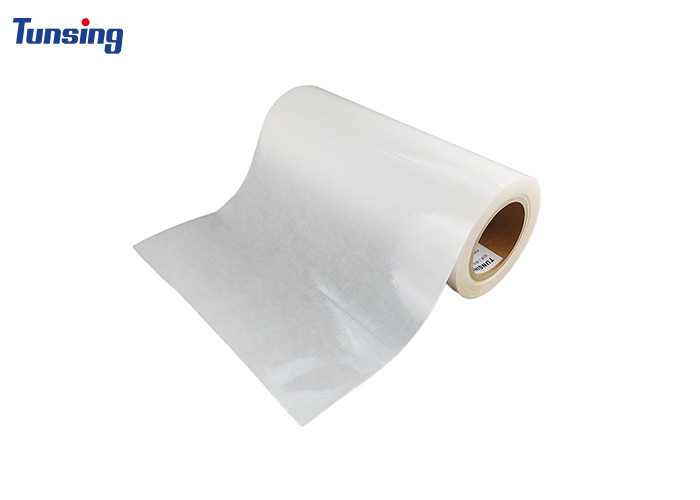

0.1mm Thickness PO Hot Melt Adhesive Film For Embroidery Patch
PO Hot Melt Adhesive Film Product: DS019100R
PO Hot Melt Adhesive Film Description:
This product is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
PO Hot Melt Adhesive Film Applications:
Development direction and application of DS019100R is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts.
PO Hot Melt Adhesive Film Physical Characteristics:
|
Color |
transparent |
Release liner |
Glassine release paper |
|
Density |
0.96±0.02g/cm³ |
Conventional Thickness |
0.05mm ,0.08mm, 0.1mm, 0.12mm,0.15mm,0.18mm |
|
Melting point |
90℃ |
Width |
5mm-1480mm |
|
Operating Temperature |
130℃-160℃ |
Conventional Width |
480mm,1000mm,1380mm,1480mm |
|
Melt Flow Index |
100±10g/10min ; |
Length |
100 yards |
|
Washing Resistant Time |
40°C/72H |
Finished Products Specification |
480mm(width)*100yards(length)/roll |
Recommended Bonding Conditions:
| Flat Press | Second Flat Press |
| Machine Setting: 120℃-140℃ | Machine Setting: 130℃-160℃ |
| Dwell Time: 5-15 seconds | Dwell Time: 8-25seconds |
| Pressure: 0.3-0.6mpa | Pressure: 0.3-0.6mpa |
FAQ:
1 .How about hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your demands ,then recommend you right products to you.
2.Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years experience. able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know.
3.How do you transport the products?
If you are not urgent, we usually transport by ship because it is the cheapest way. But for the West Asia area,
we deliver by train because there is no sea to ship. And for samples and urgent cargo, we transport it by air as it is the fastest way .Of course if you have other better idea about transport, we will accept it.
4. May I have your samples?
If you need some sample for reference, please let us know your fully address/ship
mode with courier ,and we will arrange sample for your reference.
5. How long is the lead time?
Sample lead time:3-7 days
Bulk lead time:7-10 days(depends on order quantity)
6. How do I pay for my order?
We accept L/C ,T/T ,Western Union , Paypal , Escrow
