|Melt Index(g/10min):||100±30g/10min; Condition:ASTMD1238-04||Hot Pressing Temperature(°C):||130-160℃|
|Physical Form:||Solid Membranous With Release Paper||Conventional Thickness:||0.10mm,0.12mm And 0.15mm|
|Conventional Width:||480mm,960mm||Length:||100 Yards|
|Density:||0.96±0.02g/cm³||Washing Resistant Time:||40°C/72H|
hot melt glue sheets,
polyester adhesive film

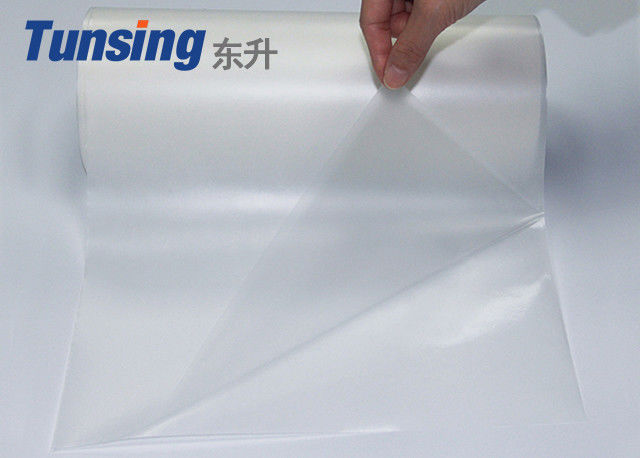

Hot Melt Adhesive Film Description of DS019100R:
EAA Hot Melt Adhesive Film is a thermoplastic adhesive product , suitable for wide range of adherend . It can be repeatedly heated for bonding. It performs an excellent adhesion for fabrics, textiles, cotton etc. This adhesive product possesses excellent washability and with good dry cleaning and chemical additives resistant.
Hot Melt Adhesive Film Applications of DS019100R:
DS019100R Development direction and application of DS019100R is for adhesion in garments accessories, footwear, handbags, luggage, embroidery, hot fix, iron logo and crafts .
Hot Melt Adhesive Film Composition:
Ethylene acrylic acid copolymer
Hot Melt Adhesive Film Physical Characteristics:
|Model||Washing Resistance||Press Time||Melting Point||Hardness||MI Index||Operating Temperature||Conventional wide||Conventional Thickness|
|DS019100R||40°C/72H||First: 8-10S Second:15-20S||90°C||100||130°C -160°C||480mm,960mm||0.1mm,0.12mm,0.15mm|
|DS019300M||60°C/72H||First: 5-8S Second:10-15S||300||120°C -150°C||480mm,960mm||0.1mm,0.12mm,0.15mm|
1, Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2, In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular application damage, direct or consequential, arising out of the use, misuse or inability to use the product.
Customer Feedback of DS019100R:
Packing & Shipping:
Packing: 100 yard in roll, 2 rolls in case
Shipping: 5-7days by Express (DHL, FedEx, USP and so on)
Why Choose Us
1, more than 10 years experience in production.
2, well-known products: Sichuan Famous Brand.
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
Q1) . What is hot melt adhesive film?
A: It is just a film, and the basic material is release paper. But the film is solid in room temperature, when reach its melt point, it is able to bond other materials, Different materials of hot melt adhesive film have different performances and different usages, we need understand your products needs, then recommend you right products,
Q2).Do you accept OEM or ODM?
Yes ,we accept OEM and ODM, we are professional heat transfer material manufacturer ,having more than 10years domestic sale experience, we are able to assist you R&D new products. So if you need bonding some special materials, please don’t hesitate to let us know,
Q3).How do you ship the products?
If you are not urgent, we usually transport by sea in large quantity, which is the cheapest shipping way. And for samples and urgent cargo, we transport it by air or by express, as it is the fastest way etc,
Q4). Do you provide free sample? And how many days it will take?
Yes, of course.we provide free 3-5Y sample for your testing only need you to pay the shipping cost. We will make the sample within 3 working days and it will take 3-7days on the transportation., then you will have more confidence in our product quality and service,
Q5). How long is the lead time?
Sample lead time: 1-3 days
Bulk lead time: 7-20days(depends on order quantity),
Q6). How do I pay for my order?
We usually accept L/C ,T/T ,Western Union , Paypal.
