Payment & Shipping Terms:
|Opening Time:||10min||Hardness:||82±2 Shore A|
|Melt Flow Index:||5±1g/10min; Condition:ASTMD1238-04||Heology Temperature:||112°C|
|Operating Temperature:||130°C -160°C||Release Liner:||Glassine Release Paper|
|Conventional Thickness:||0.05mm,0.08mm,0.15mm||Conventional Width:||1380mm|
|Length:||100 Yards||Finished Products Specification:||1380mm*100yards/roll|
hot melt glue sheets,
polyester adhesive film

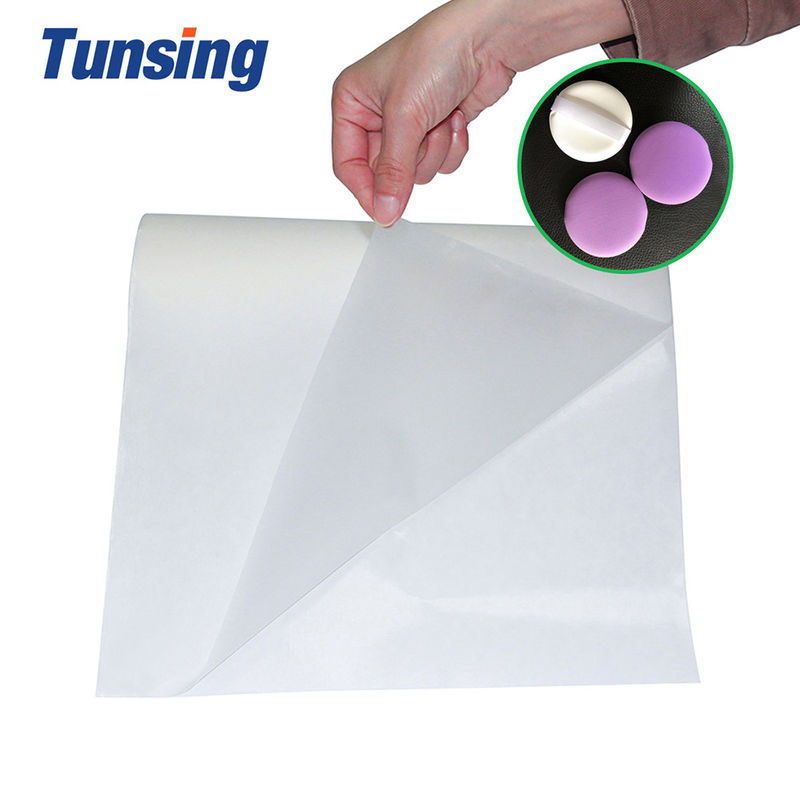

Hot melt adhesive film Product: DS8501
Hot melt adhesive film descrition:
DS8501 is a thermoplastic material, for a variety of materials can be applied to the hot melt adhesive, It can repeatedly heated plastic bonding. This kind of hot melt adhesive has good adhesion to textile, polyester, cotton, blended fabric, TPU, PVC, PC / ABS, and has good resilience, elasticity, heat resistance, cold resistance and water resistance .
Hot melt adhesive film Composition:
Hot melt adhesive film application
DS8501 development direction and application is for clothing, shoes, textile accessories, handbags, luggage, ipad protective cover, mobile phone protective cover, sports equipment and other materials bonding.
TPU Hot Melt Adhesive Film Physical Characteristics:
|Color||transparent||Release Liner||Glassine release paper|
|Hardness||82±2 Shore A||Conventional thickness||0.05mm,0.08mm,0.15mm|
|Melt Flow Index||5±1g/10min;
|Rheology Temperature||112°C||Length||100 yards|
||130°C -160°C||Finished Products specification||1380mm*100yards/roll|
TPU Hot Melt Adhesive Film Recommended Bonding Conditions:
|Flat Press||Second Flat Press|
|Machine Setting: 120℃-140℃||Machine Setting: 130℃-160℃|
|Dwell Time: 5-15 seconds||Dwell Time: 8-25seconds|
|Pressure: 0.3-0.6mpa||Pressure: 0.3-0.6mpa|
1,Bonding temperature and pressure as well as the time involved in the strength of the film to material. Bonding temperature must be close to the machine set the temperature, the pressure must be uniform, mold and pressure roller must be flat.
2,In different machinery and materials, the bonding conditions used will be different. The conditions marked here are only basic. The optimum bonding conditions should be made by creating suitable construction conditions for the particular applicationdamage, direct or consequential, arising out of the use, misuse or inability to use the product.
TPU Hot Melt Adhesive Film Related Products
TPU Hot Melt Adhesive Film Customer feedback
1.14th Dhaka International Yarn & Fabric Show 2018
2. TRUSTECH 2018 in France
3.Smart Cards Expo 2018 in India
We will have the exhibition in Singapore in June, welcome to all of friends to come to our booth.
TPU Hot Melt Adhesive Film Packing and Delivery
1PC/PE FILM, 100yard/roll, 2~4roll/CTN, or it's up on the customer's option.
Shipped in 3-5 days after payment
1, Q: How will you pack the product?
A: We pack with paper cartons, usually 4 or 6 rolls per carton for hand stretch film; 1 roll for machine stretch film; 56 or 84 rolls for mini stretch film and 27 rolls per pallet for jumbo stretch film.
2, Q: How many rolls can be full fitted into one container, such as 20FT, 40FT?
A: The details are in the above forms. If your specification is different, you need to tell us the size of the carton, and then we will calculate for you accordingly.
3, Q: How about the adhesive of the stretch film?
A: It is self adhesive stretch film. We can produce one side and two sides adhesive but usually one side adhesive. Besides, the stickiness can be controlled as customized.
4, Q: How many layers of the stretch film can your equipment make?
A: Our equipment can produce 1/2/3 layers stretch film.
5, Q: Do you accept OEM?
A: Yes, we do.
6, Q: Do you provide free sample? And how many days it will take?
A: Yes, we provide free sample, only need you to pay the courier charge. We will make the sample within 3 working days and it will take 3-7days on the transportation.
7, Q: What's your delivery time?
A: We are factory, so we can efficiently control the production time, and then for the delivery time, it is 5-20 working days.
8, Q: What's your production capacity?
A: At present, our production capacity is 100 metric tons per month. However, we are planning to open a new factory and add more production lines.
9, Q: Can you produce colored stretch film?
A: Except clear and transparent, we can make colored stretch film, such as black, white, blue, etc. But mostly we make clear and transparent. If the quantity is big, we will make color stretch film for you.
10, Q: What's your payment term?
A: We accept T/T, L/C, O/A, Western Union, Paypal, Escrow, or customized if it is acceptable.
